Chapter 8
The following format samples show how to generate a PDF-417 bar code:

Sample Format #1:

^D77<CR>
:PDF-417 bar code data^\
0<CR>
4<CR>
0<CR>
500<CR>
2<CR>
0<CR>
^D57<CR>
2,1280,900,,,7,2,0,1<CR>
1,330,350,1,46,,,,2,3<CR>
2,640,250,11,7,40,,4<CR>
^D56<CR>
^D2<CR>
P<CR>
Text string<CR>
^D3<CR>

Sample Format #2:

^D77<CR>
:PDF-417 bar code data<CR>
entered on two separate lines^\
0<CR>
4<CR>
90<CR>
500<CR>
2<CR>
0<CR>
^D57<CR>
2,1280,900,,,7,2,0,1<CR>
1,380,200,1,46,,,,3,2<CR>
2,640,100,11,7,40,,4<CR>
^D56<CR>
^D2<CR>
placeholder<CR>
Text string<CR>
^D3<CR>
224/424 Operator's Manual - 880027-1000

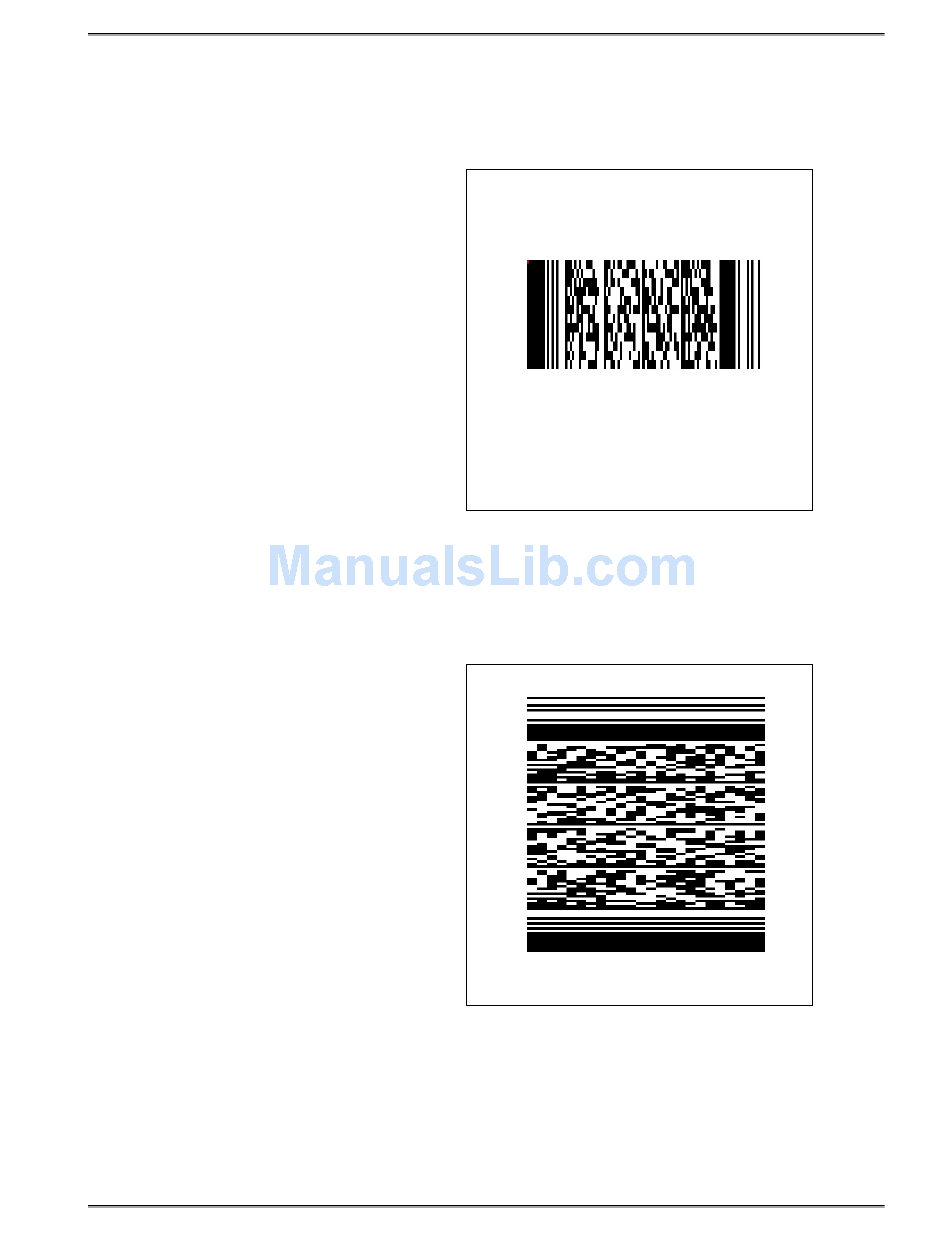

Figure 8-2 PDF-417 Sample Format #1
