Chapter 8
Aspect Ratio<CR>
This parameter is used to adjust the aspect ratio of the PDF-417 symbology. The value is
entered in ratio format (height: width) and has a default value of 2:1. A carriage return
character must be used to terminate this field.
The following format samples show how to generate a PDF-417 bar code:

Sample Format #1:

^D77<CR>
:PDF-417 bar code data^\
3<CR>
30<CR>
0<CR>
0<CR>
0<CR>
2:1<CR>
^D57<CR>
2,640,609,,25,35,0,1,284<CR>
1,190,300,1,46<CR>
2,190,200,11,1,5<CR>
^D56<CR>
^D2<CR>
P<CR>
Text string<CR>
^D3<CR>
334M Operator's Manual - 880060-0110
ECC#
0
1
2
3
4
5
6
7
8

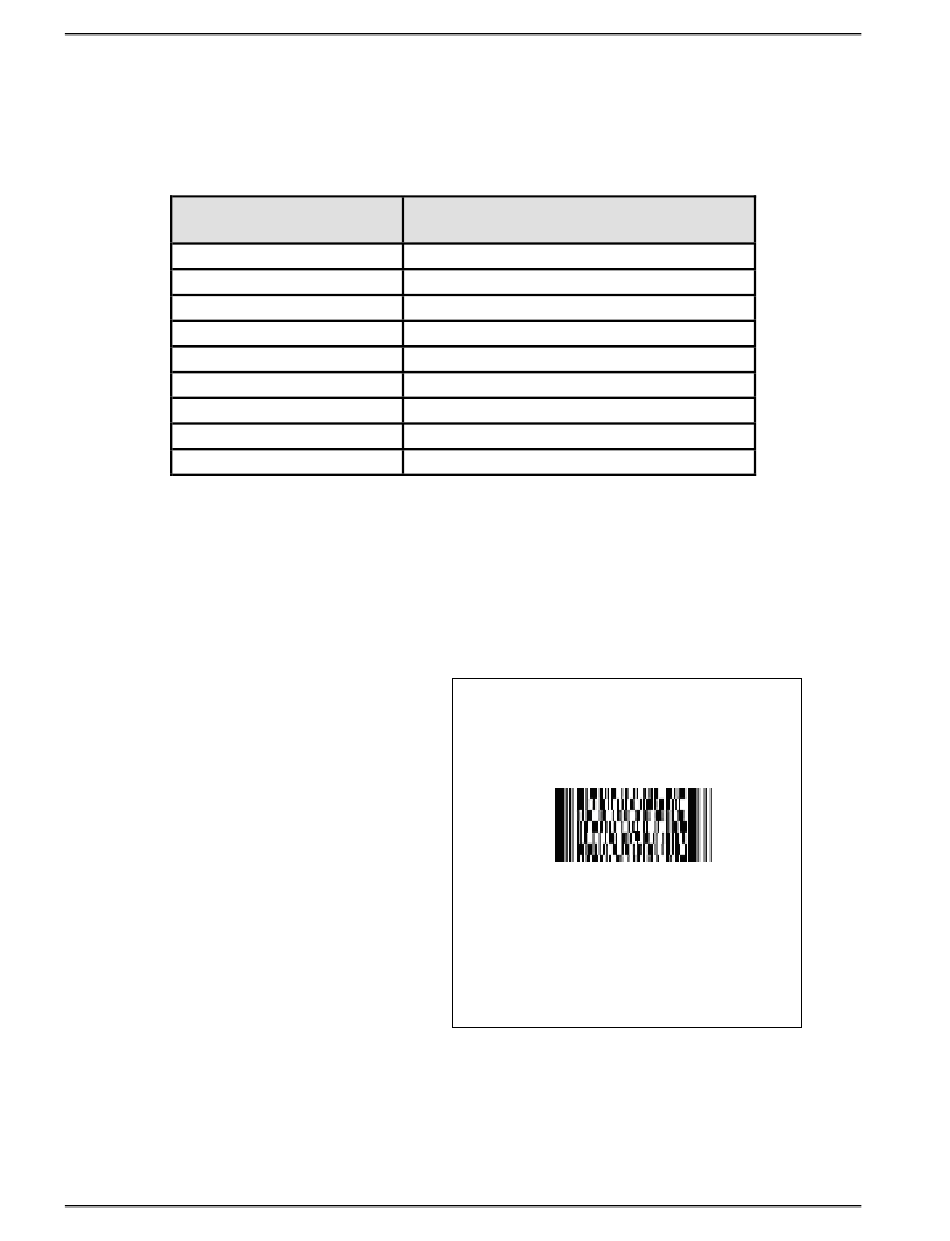

Table 8-3 PDF-417 Error Correction Level
Figure 8-9 PDF-417 Sample Format #1
Number of Error Correction
Codewords
2
4
8
16
32
64
128
256
512
Text string
Bar Codes
