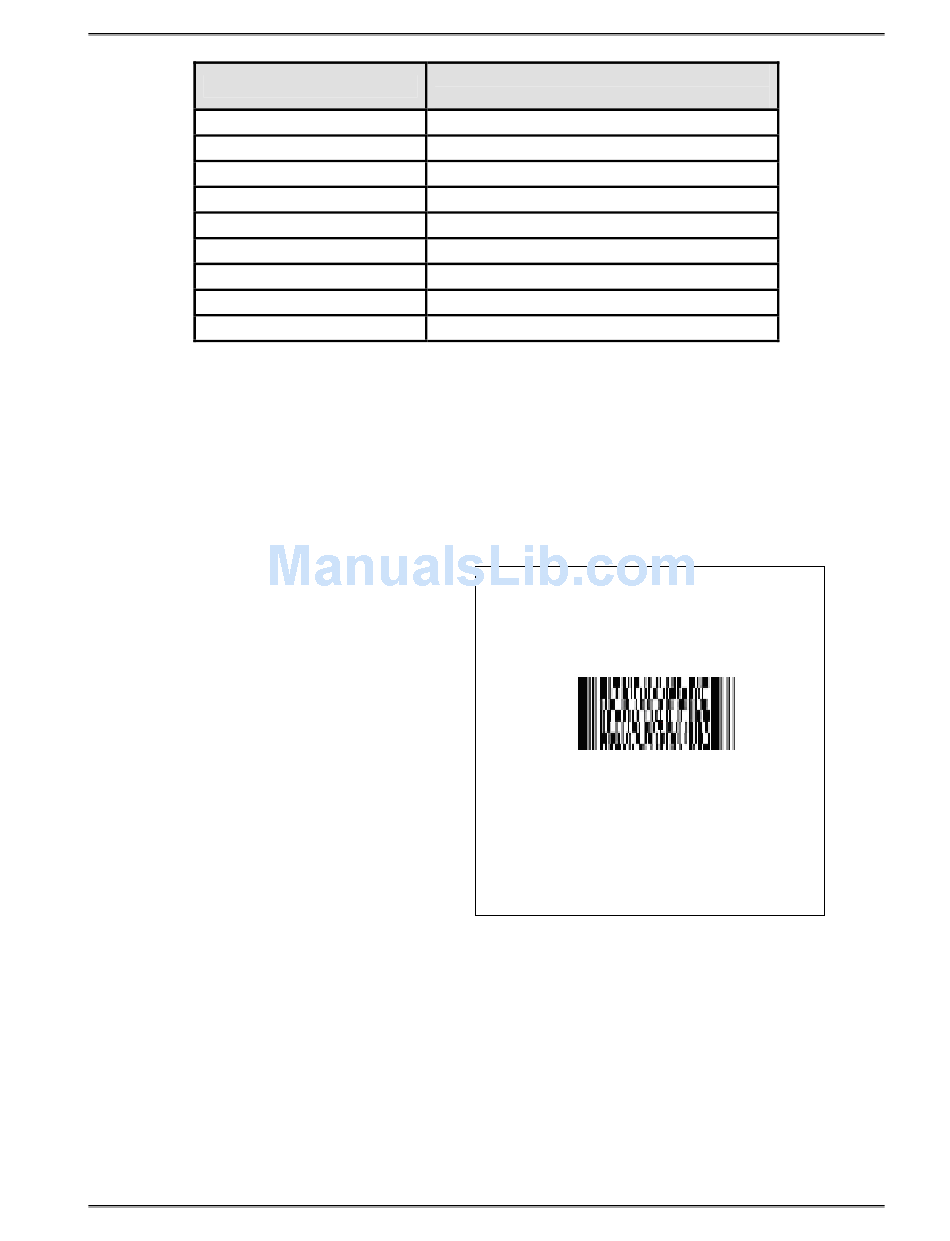

Figure 8-9 Pdf-417 Sample Format #1; Table 8-4 Pdf-417 Error Correction Level - Microcom 428TM Operator's Manual

Chapter 8
The following format samples show how to generate a PDF-417 bar code:
Sample Format #1:
^D77<CR>
:PDF-417 bar code data^[
3<CR>
30<CR>
0<CR>
0<CR>
0<CR>
2:1<CR>
^D57<CR>
2,575,609,,25,35,0,1,285<CR>
1,190,300,1,46<CR>
2,190,200,11,1,5<CR>
^D56<CR>
^D2<CR>
P<CR>
Text string<CR>
^D3<CR>
428TM Operator's Manual - 880042-0141
ECC#
0
1
2
3
4
5
6
7
8
Table 8-4 PDF-417 Error Correction Level
Figure 8-9 PDF-417 Sample Format #1
Number of Error Correction
Codewords
2
4
8
16
32
64
128
256
512
Text string
Bar Codes
