Bar Codes
Figure 8-7
8.1.22.5 RSS-14 Limited
RSS-14 Limited has the same data characteristics as the Standard RSS-14 barcode, except
that it may only include values up to 4 trillion. This symbology is specifically designed to be
read by wands and handheld laser scanners. Omni-directional scanners can not read it
efficiently.
8.1.22.6 RSS-14 Expanded
RSS-14 Expanded is a variable length symbology capable of encoding up to 74 numeric or
41 alphabetic characters. This symbology does allow for the linkage flag, which determines
if there is a 2D composite barcode associated with the linear barcode. Despite the possible
length of the symbol, it can still be omni directionally read by suitably programmed laser
point-of-sale scanners because the symbol can be decode in up to 22 segments and then
reconstructed.
8-18

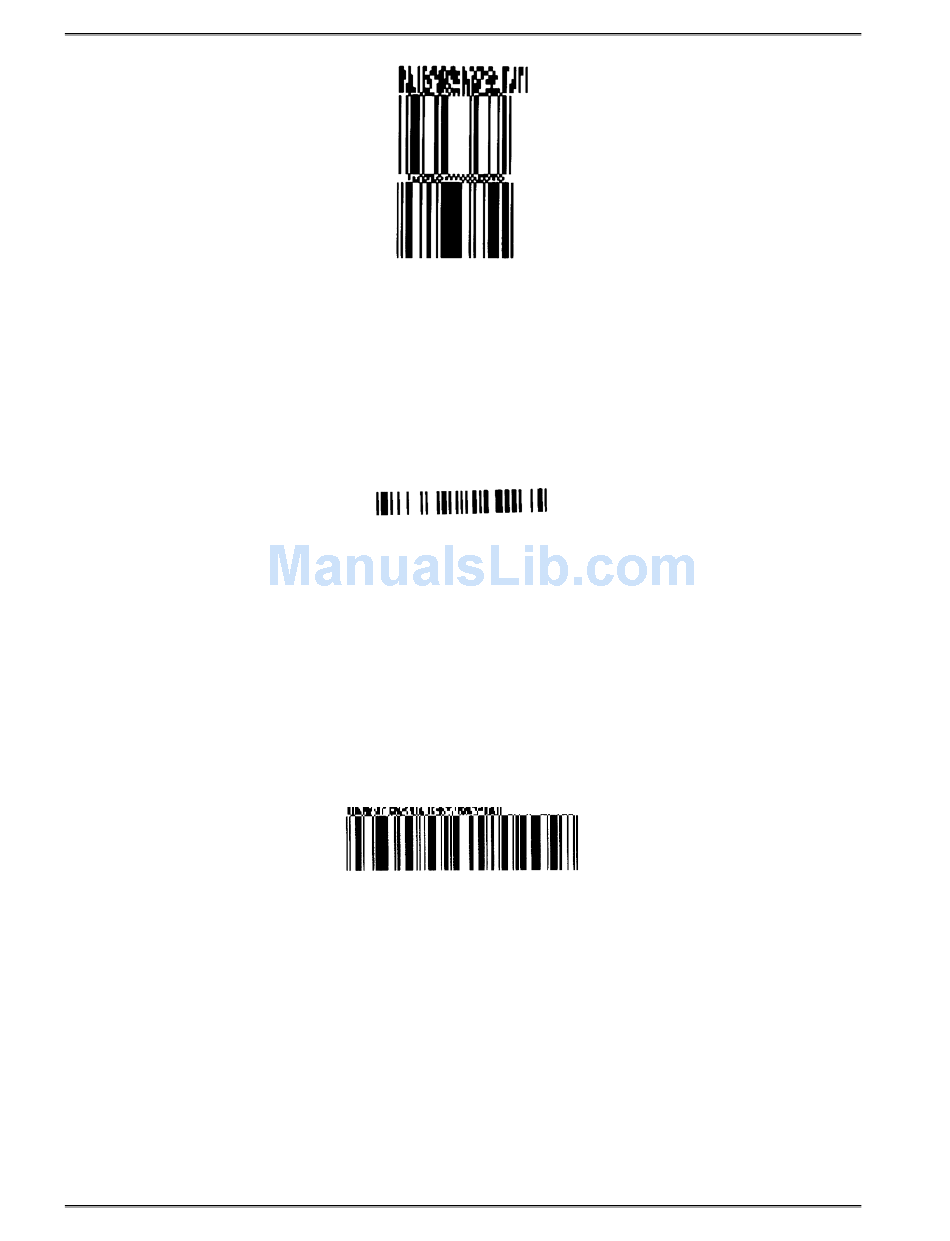

RSS-14 Stacked Omni-directional Sample
Figure 8-8 RSS-14 Limited Sample
Figure 8-9 RSS-12 Expanded Sample
224/424 Operator's Manual - 880027-1000
Chapter 8
