Figure 16 Pdf-417 Sample Format #1; Figure 17 Pdf-417 Sample Format #2 - Microcom 322M Operator's Manual

Chapter 9
Sample Format #1:
^D77<CR>
:PDF-417 bar code data^[
3<CR>
30<CR>
0<CR>
0<CR>
0<CR>
2:1<CR>
^D57<CR>
2,575,609,,25,35,0,1,285<CR>
1,190,300,1,46<CR>
2,190,200,11,1,5<CR>
^D56<CR>
^D2<CR>
P<CR>
Text string<CR>
^D3<CR>
Sample Format #2:
^D77<CR>
:PDF-417 bar code data<CR>
entered on two separate lines^[
3<CR>
30<CR>
90<CR>
0<CR>
0<CR>
2:1<CR>
^D57<CR>
2,575,609,,25,35,0,1,285<CR>
1,190,300,1,46<CR>
2,190,200,11,1,5<CR>
^D56<CR>
^D2<CR>
placeholder<CR>
Text string<CR>
^D3<CR>
322M Operator's Manual
Text string

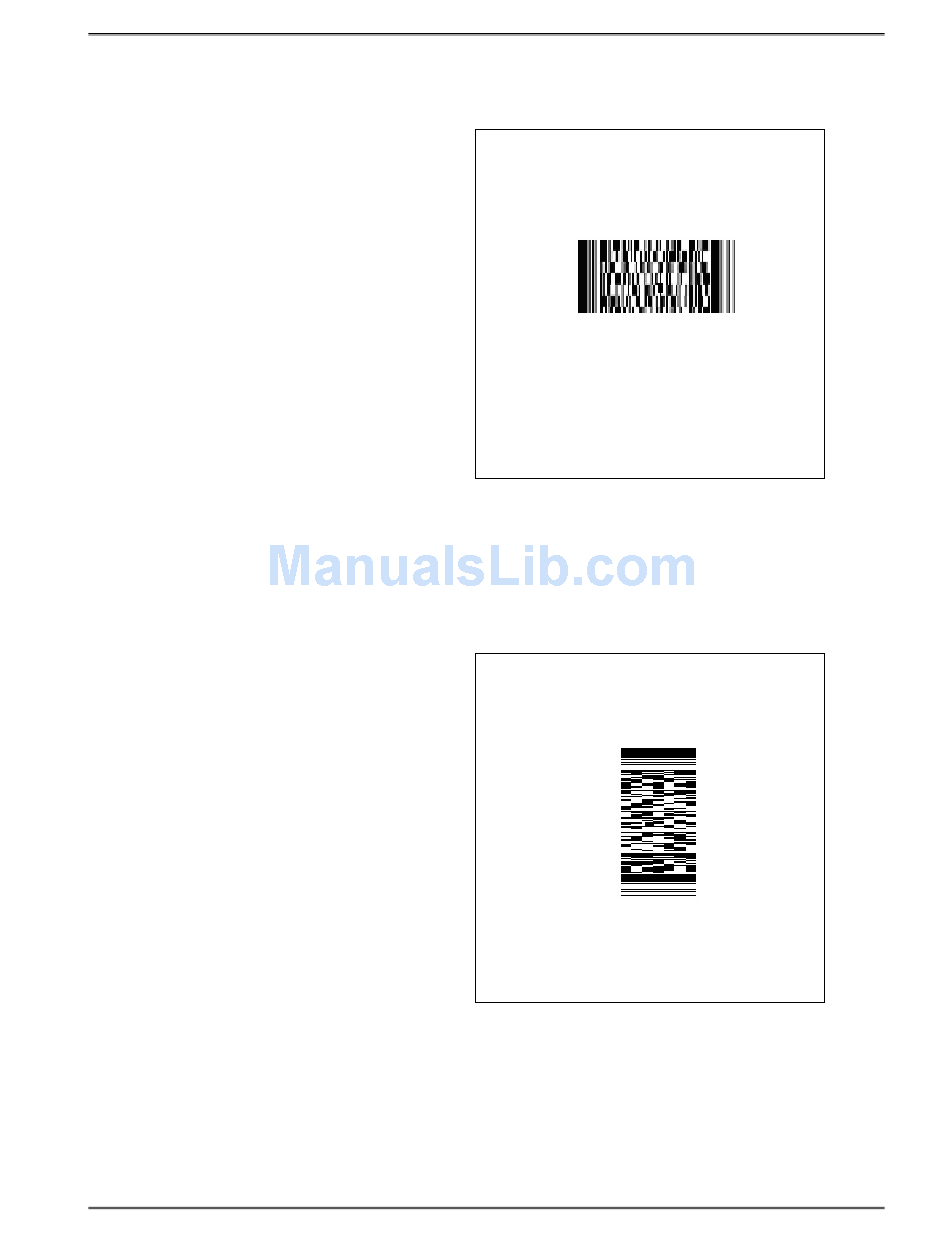

Figure 16 PDF-417 Sample Format #1
Text string
Figure 17 PDF-417 Sample Format #2
Bar Codes
81
