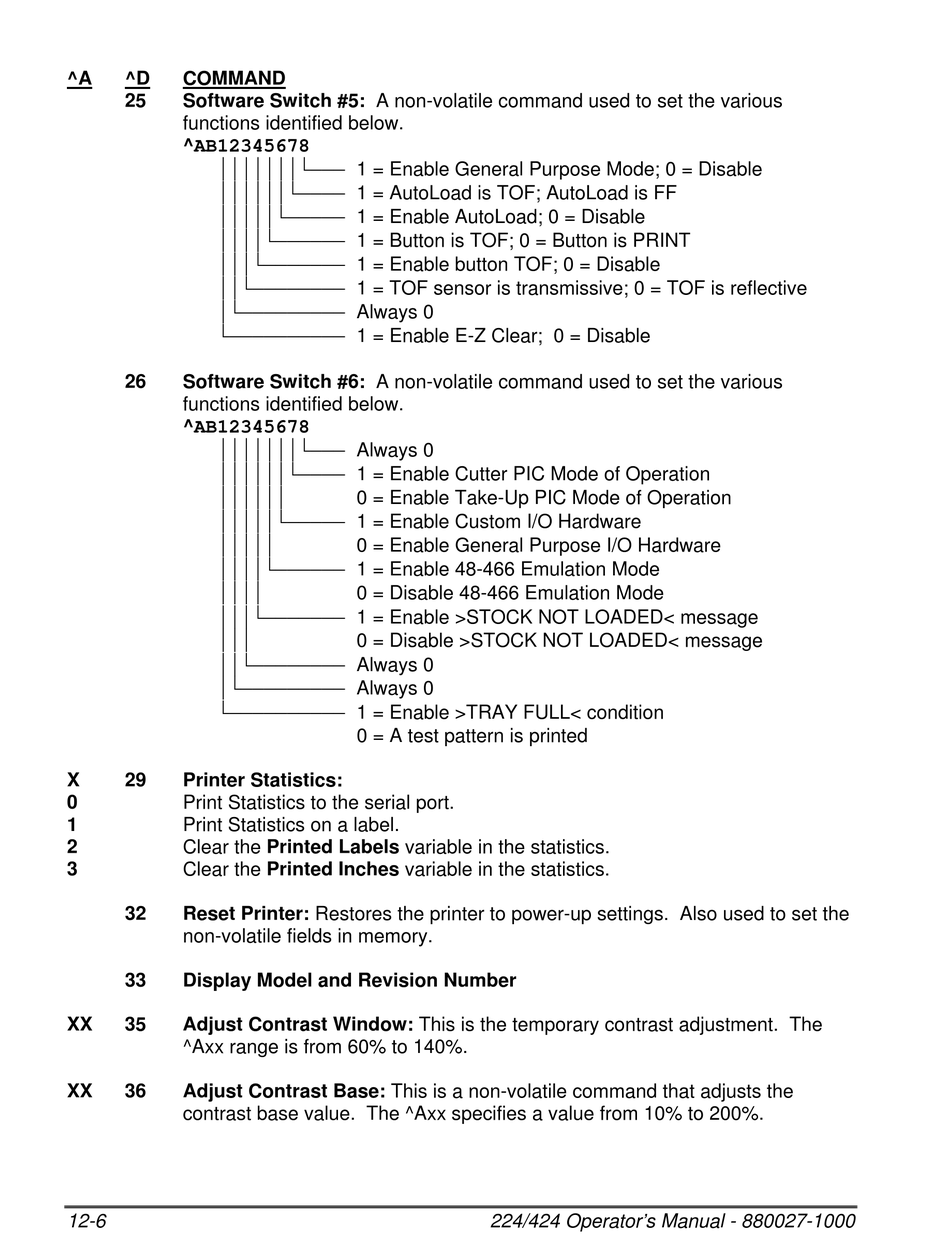

^A ^D COMMAND
25 Software Switch #5: A non-volatile command used to set the various
functions identified below.
^AB12345678
*******.))) 1 = Enable General Purpose Mode; 0 = Disable
******.)))) 1 = AutoLoad is TOF; AutoLoad is FF
*****.))))) 1 = Enable AutoLoad; 0 = Disable
****.)))))) 1 = Button is TOF; 0 = Button is PRINT
***.))))))) 1 = Enable button TOF; 0 = Disable
**.)))))))) 1 = TOF sensor is transmissive; 0 = TOF is reflective
*.))))))))) Always 0
.)))))))))) 1 = Enable E-Z Clear; 0 = Disable
26 Software Switch #6: A non-volatile command used to set the various
functions identified below.
^AB12345678
*******.))) Always 0
******.)))) 1 = Enable Cutter PIC Mode of Operation
******
*****.))))) 1 = Enable Custom I/O Hardware
*****
****.)))))) 1 = Enable 48-466 Emulation Mode
****
***.))))))) 1 = Enable >STOCK NOT LOADED< message
***
**.)))))))) Always 0
*.))))))))) Always 0
.)))))))))) 1 = Enable >TRAY FULL< condition
X 29 Printer Statistics:
0 Print Statistics to the serial port.
1 Print Statistics on a label.
2 Clear the Printed Labels variable in the statistics.
3 Clear the Printed Inches variable in the statistics.
32 Reset Printer: Restores the printer to power-up settings. Also used to set the
non-volatile fields in memory.
33 Display Model and Revision Number
XX 35 Adjust Contrast Window: This is the temporary contrast adjustment. The
^Axx range is from 60% to 140%.
XX 36 Adjust Contrast Base: This is a non-volatile command that adjusts the
contrast base value. The ^Axx specifies a value from 10% to 200%.
12-6
0 = Enable Take-Up PIC Mode of Operation
0 = Enable General Purpose I/O Hardware
0 = Disable 48-466 Emulation Mode
0 = Disable >STOCK NOT LOADED< message
0 = A test pattern is printed
