Microcom 424 Operator's Manual page 63

Chapter 5
All inputs are active high. 24.0 VDC = high 0.0 VDC = low
Connector P21 is the output port.
All outputs are active high. 24.0 VDC = high 0.0 VDC = low
P17
INPUTS

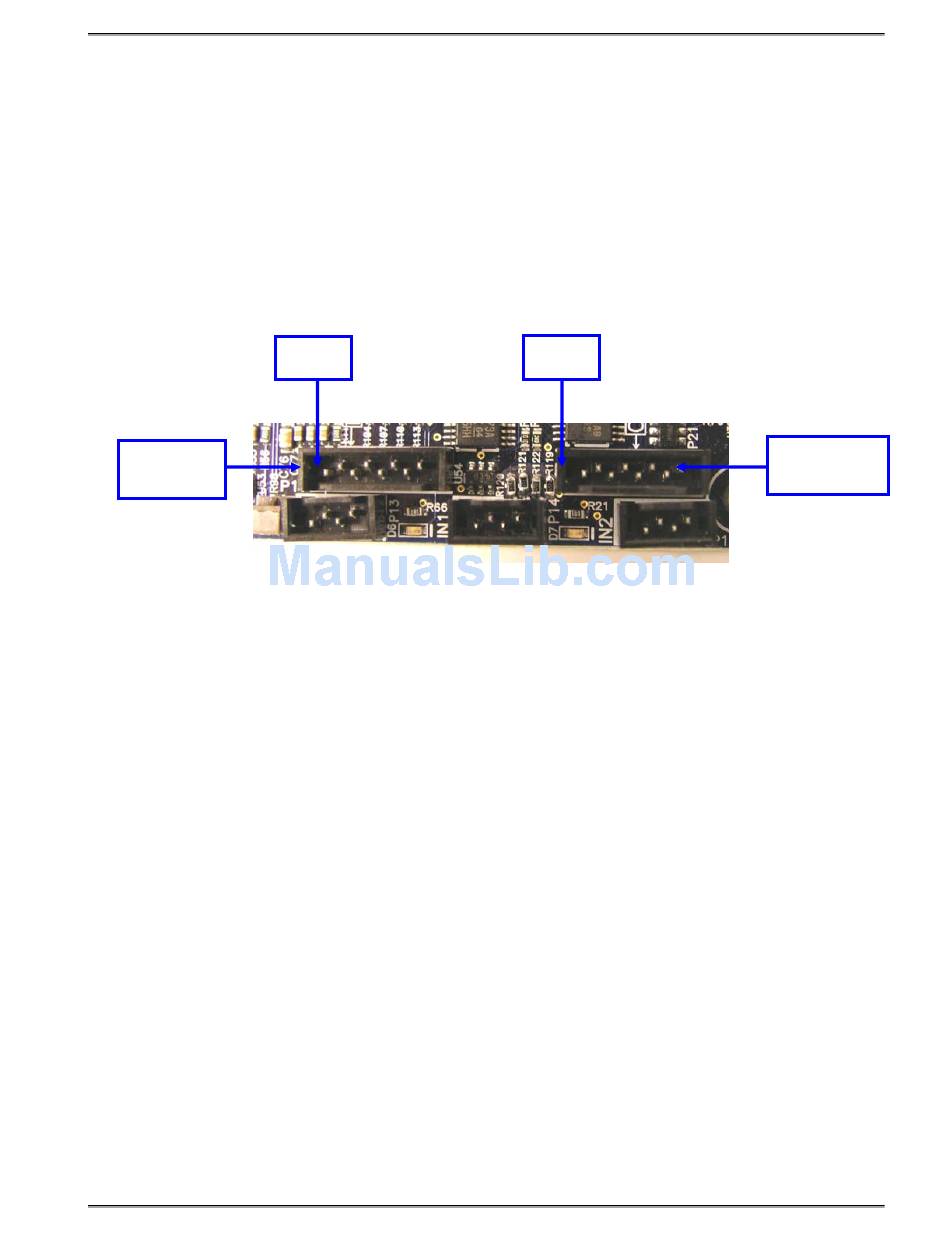

Figure 5-1
7 Select PIC Mode: This command is used to select from the various PIC
modes the printer supports. The PIC code is dedicated to the take-up
motor or the cutter.
0 = Select Cutter PIC mode of operation. When this mode is
selected the printer will power and energize a cutter when the cutter
enable command (^D99 or ^D111) is issued after a print job
1 = Select Take-up PIC mode of operation. When this mode is
selected the printer will energize a DC motor to be used in a rewind or
take up capacity. Unless the printer is properly configured with a take-
up motor and correct take-up motor specific PIC, this mode should not
be enabled because it could potentially damage the cutter.
8 Always 0
224/424 Operator's Manual - 880027-1000
1 = ground
2 = g/p output 1
3 = ground
4 = g/p output 2
5 = ground
6 = g/p output 3
7 = ground
8 = g/p output 4
Pin 1
General Purpose Hardware Inputs and Outputs
Pin 1
Printer Commands
P17
OUTPUTS
5-15
