5. Align the rest of the holes in the bar with the remaining three threaded holes along the
side of the chassis.
6. Insert three more screws through the bar and into the threaded holes in the chassis wall.
Then tighten all four screws firmly (6.0 inch-pounds).
7. Install the remaining small bar on the other side of the chassis by repeating steps 1–6.
The faceplate
appearance may vary
from that shown.
1

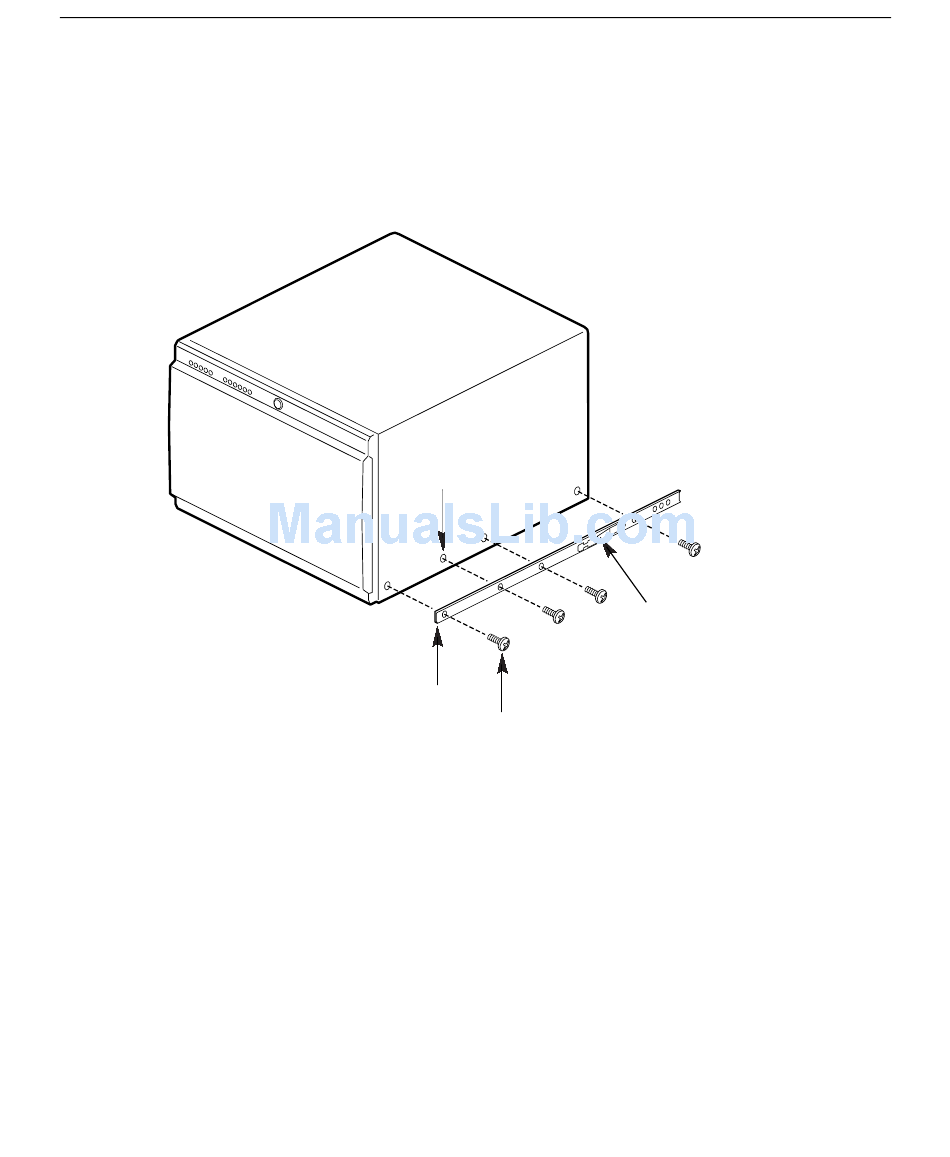

1 Threaded hole in chassis
2 Safety latch
3 Screw, #8-32 x .5 Phillips trusshead
4
4 Small outer bar
3
2
