QUICK REFERENCE GUIDE

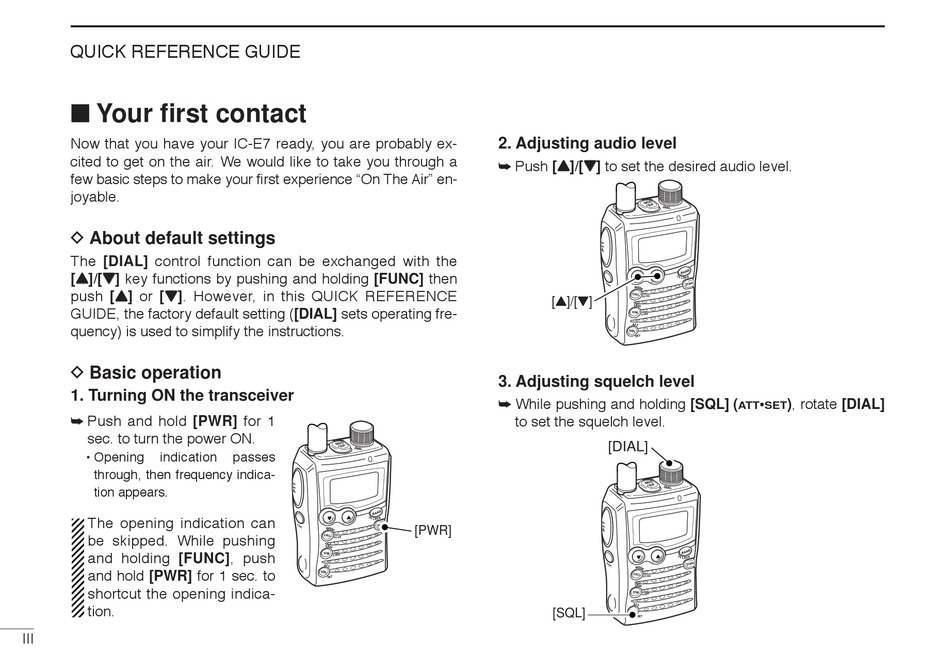

■ Your first contact
Now that you have your IC-E7 ready, you are probably ex-
cited to get on the air. We would like to take you through a
few basic steps to make your first experience "On The Air" en-
joyable.
D About default settings
The [DIAL] control function can be exchanged with the
[Y Y ]/[Z Z ] key functions by pushing and holding [FUNC] then
push [Y Y ] or [Z Z ]. However, in this QUICK REFERENCE
GUIDE, the factory default setting ([DIAL] sets operating fre-
quency) is used to simplify the instructions.
D Basic operation
1. Turning ON the transceiver
➥ Push and hold [PWR] for 1
sec. to turn the power ON.
• Opening indication
through, then frequency indica-
tion appears.
The opening indication can
be skipped. While pushing
and holding [FUNC], push
and hold [PWR] for 1 sec. to
shortcut the opening indica-
tion.
III
passes
2. Adjusting audio level
➥ Push [Y Y ]/[Z Z ] to set the desired audio level.
[Y]/[Z]
3. Adjusting squelch level
➥ While pushing and holding [SQL] (
to set the squelch level.
[PWR]
[SQL]
• ), rotate [DIAL]
ATT SET
[DIAL]
