1

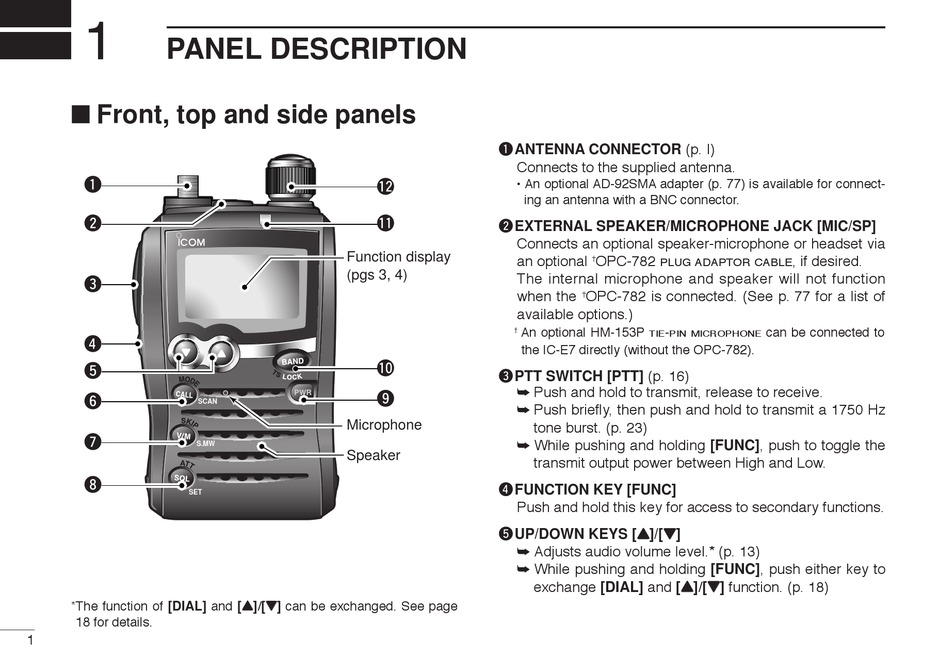

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
r
t
y
SCAN
u
S.MW
i
SET
*The function of [DIAL] and [Y Y ]/[Z Z ] can be exchanged. See page
18 for details.
1
q ANTENNA CONNECTOR (p. I)
Connects to the supplied antenna.
!2
• An optional AD-92SMA adapter (p. 77) is available for connect-
ing an antenna with a BNC connector.
!1
w EXTERNAL SPEAKER/MICROPHONE JACK [MIC/SP]
Connects an optional speaker-microphone or headset via
Function display
an optional
(pgs 3, 4)
The internal microphone and speaker will not function
when the
available options.)
† An optional HM-153P
the IC-E7 directly (without the OPC-782).
!0
e PTT SWITCH [PTT] (p. 16)
➥ Push and hold to transmit, release to receive.
o
➥ Push briefly, then push and hold to transmit a 1750 Hz
Microphone
➥ While pushing and holding [FUNC], push to toggle the
Speaker
r FUNCTION KEY [FUNC]
Push and hold this key for access to secondary functions.
t UP/DOWN KEYS [Y Y ]/[Z Z ]
➥ Adjusts audio volume level.* (p. 13)
➥ While pushing and holding [FUNC], push either key to
† OPC-782
PLUG ADAPTOR CABLE
† OPC-782 is connected. (See p. 77 for a list of
-
TIE PIN MICROPHONE
tone burst. (p. 23)
transmit output power between High and Low.
exchange [DIAL] and [Y Y ]/[Z Z ] function. (p. 18)
, if desired.
can be connected to
