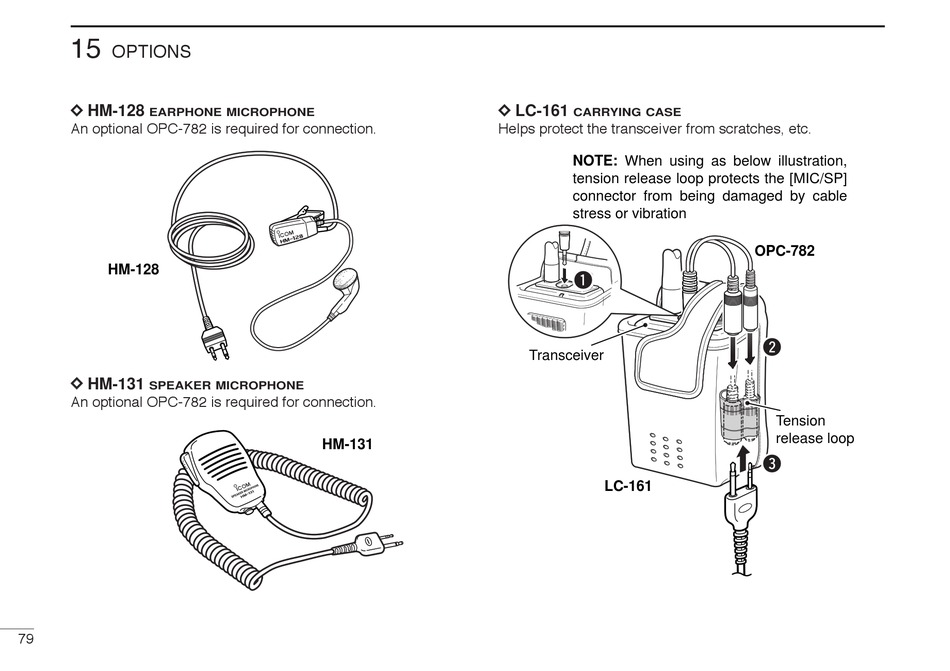

15
OPTIONS
D D HM-128
EARPHONE MICROPHONE
An optional OPC-782 is required for connection.
HM-128
D D HM-131
SPEAKER MICROPHONE
An optional OPC-782 is required for connection.
79
D D LC-161
Helps protect the transceiver from scratches, etc.
HM-131
CARRYING CASE
NOTE: When using as below illustration,
tension release loop protects the [MIC/SP]
connector from being damaged by cable
stress or vibration
q
Transceiver
LC-161
OPC-782
w
Tension
release loop
e
