Disassembly

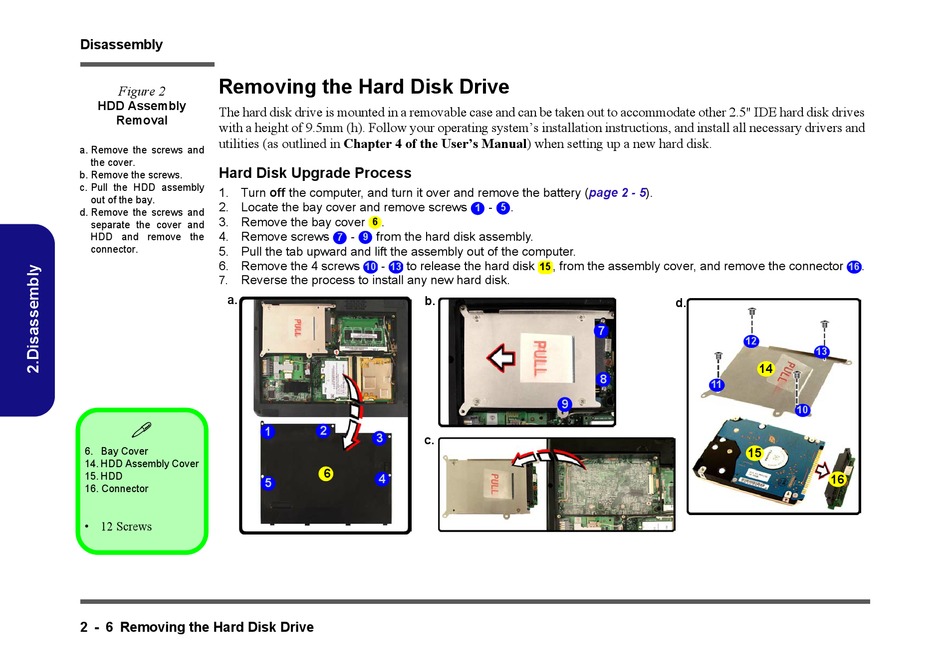

Removing the Hard Disk Drive

Figure 2
HDD Assembly
The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" IDE hard disk drives
Removal
with a height of 9.5mm (h). Follow your operating system's installation instructions, and install all necessary drivers and
utilities (as outlined in Chapter 4 of the User's Manual) when setting up a new hard disk.
a. Remove the screws and
the cover.
Hard Disk Upgrade Process
b. Remove the screws.
c. Pull the HDD assembly
1. Turn off the computer, and turn it over and remove the battery
out of the bay.
2. Locate the bay cover and remove screws
d. Remove the screws and
3. Remove the bay cover
separate the cover and
4. Remove screws
HDD and remove the
connector.
5. Pull the tab upward and lift the assembly out of the computer.
6. Remove the 4 screws
Reverse the process to install any new hard disk.
7.
a.
6. Bay Cover
14. HDD Assembly Cover
15. HDD
16. Connector
• 12 Screws
2 - 6 Removing the Hard Disk Drive
.
6
- from the hard disk assembly.
7 9
- to release the hard disk
10 13
b.
2
1
3
c.
6
4
5
(page 2 - 5).
- .
5
1
, from the assembly cover, and remove the connector
15 11
7
8
9
16
d.
12
13
14
11
10
15
16
.
