M560A Mainboard Overview - Top (Connectors)

17
16
15
14
3
2
1
4 5
18
12
13
M560A Mainboard Overview - Top (Connectors) 1 - 11
9
8
6 7
10
19
11
10
Introduction

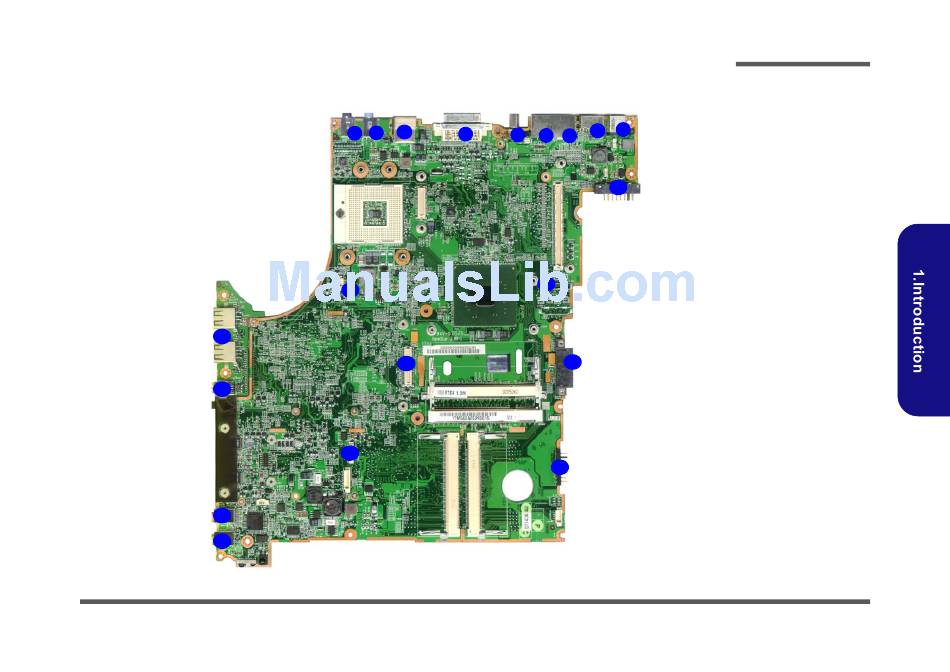

Figure 9
Mainboard Top
Connectors
1. S/PDIF-Out Jack
2. Line-In Jack
3. USB Port
4. DVI-Port
5. TV -In Jack
6. RJ-11 Jack
7. RJ-45 Jack
8. S-Video Jack
9. DC-In Jack
10. Battery
Connectors
11. CD Connector
12. HDD Connector
13. Bluetooth
Connector
14. Headphone-Out
Jack
15. Microphone-In
Jack
16. 1394a
Mini-IEEE
Port
17. USB Ports
18. System Fan
Connector
19. LCD Connector
