External Locator - Left & Right Side View
M560A
4
2
1
3
1
5
6
8
7
2
External Locator - Left & Right Side View 1 - 7
Introduction

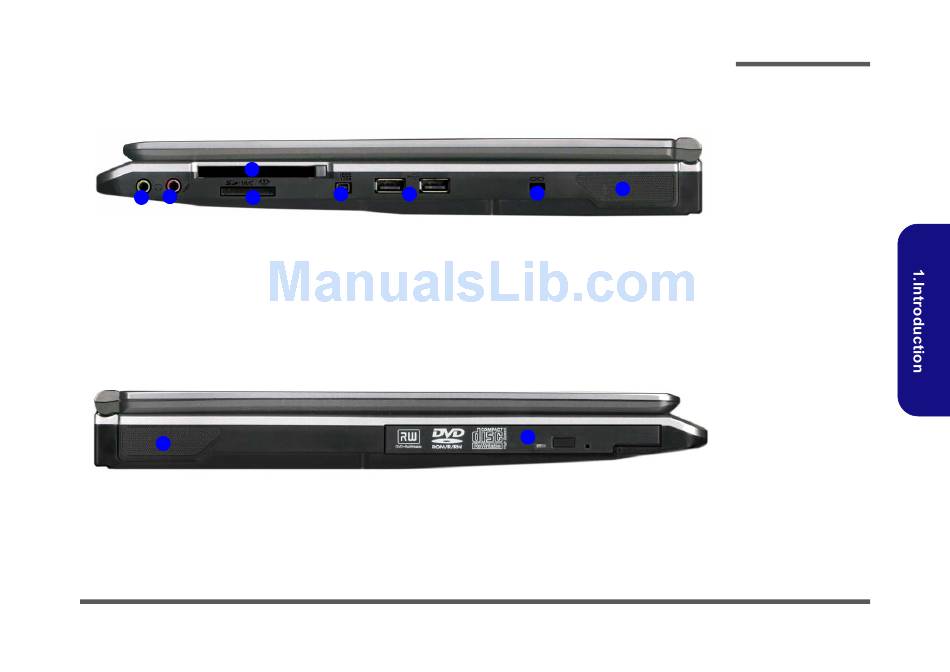

Figure 4
Right Side View
1.
Headphone-Out
Jack
2.
Microphone-In Jack
3.
4-in-1 Card Reader
4.
PC Card Slot
5.
Mini-IEEE 1394a
Port
6.
2 * USB 2.0 Ports
7.
Security Lock Slot
8.
Speaker
Figure 5
Left Side View
1. Speaker
2. Optional Device
Drive Bay
