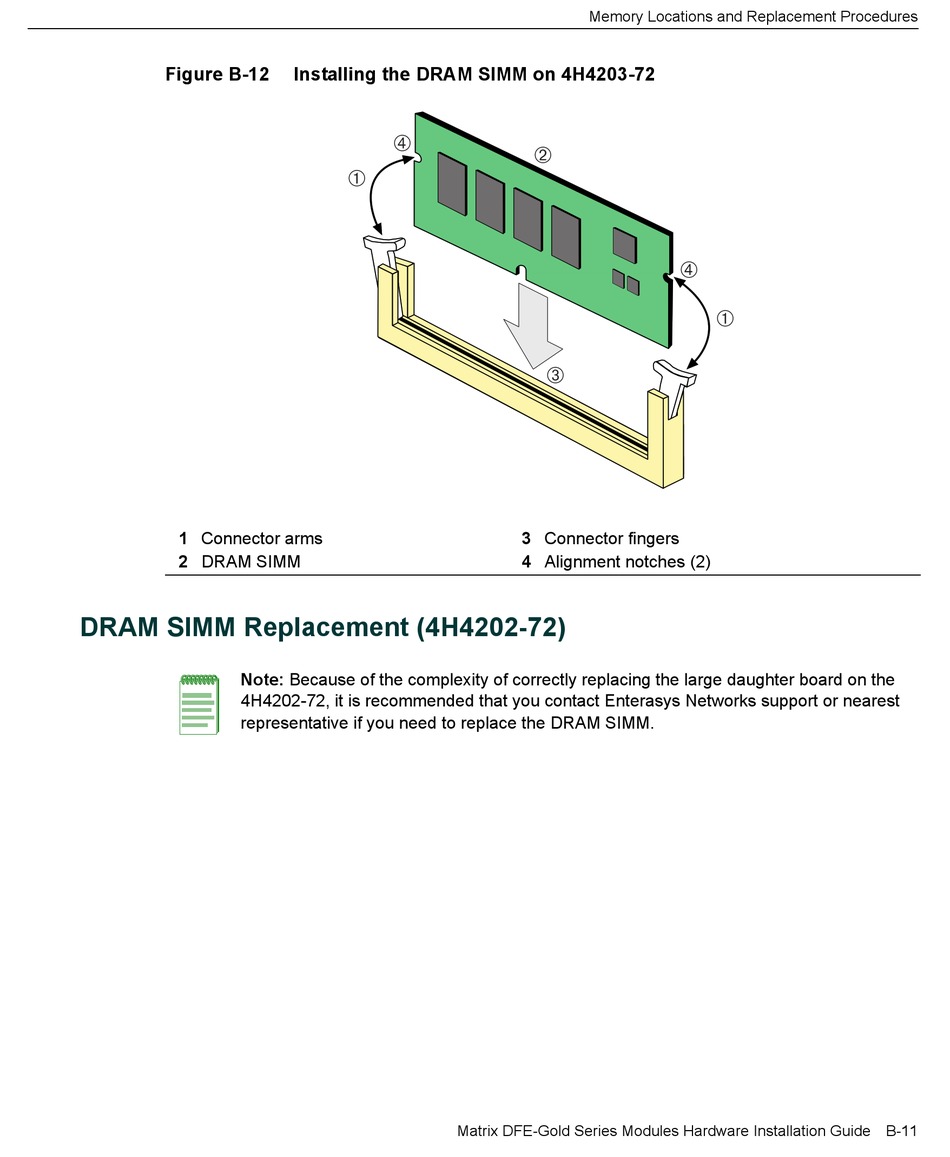

Figure B-12

1 Connector arms

2 DRAM SIMM

DRAM SIMM Replacement (4H4202-72)

Note: Because of the complexity of correctly replacing the large daughter board on the

4H4202-72, it is recommended that you contact Enterasys Networks support or nearest

representative if you need to replace the DRAM SIMM.

Matrix DFE-Gold Series Modules Hardware Installation Guide B-11

Memory Locations and Replacement Procedures

3 Connector fingers

4 Alignment notches (2)
