Mode Switch Location On 4H4202-72; Mode Switch Location On 4H4284-49 - Enterasys Gold Distributed Forwarding Engine 4H4202-72 Hardware Installation Manual

Enterasys networks switch hardware installation guide

Table of Contents

Setting the Mode Switches

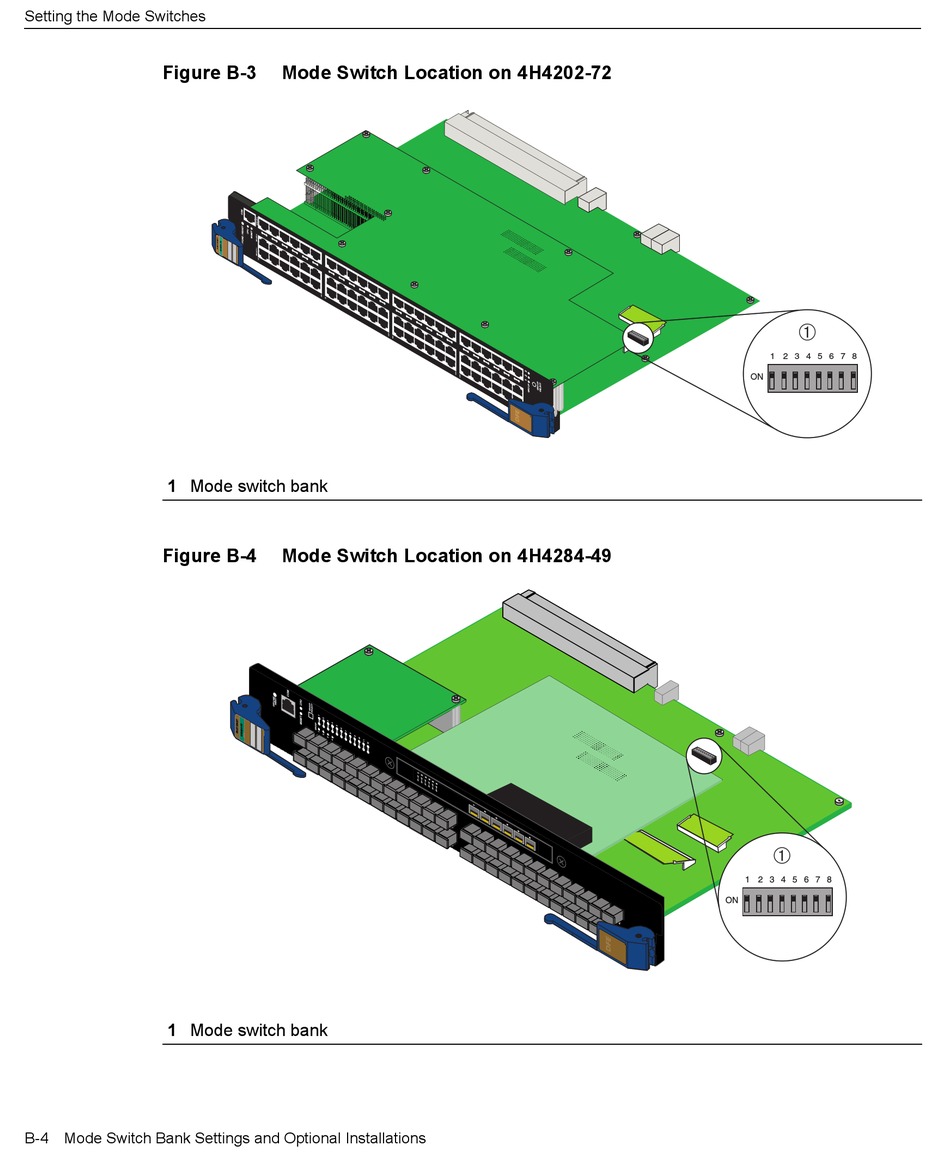

Figure B-3

1 Mode switch bank

Figure B-4

1 Mode switch bank

B-4 Mode Switch Bank Settings and Optional Installations

Mode Switch Location on 4H4202-72

➀

1 2 3 4 5 6 7 8
