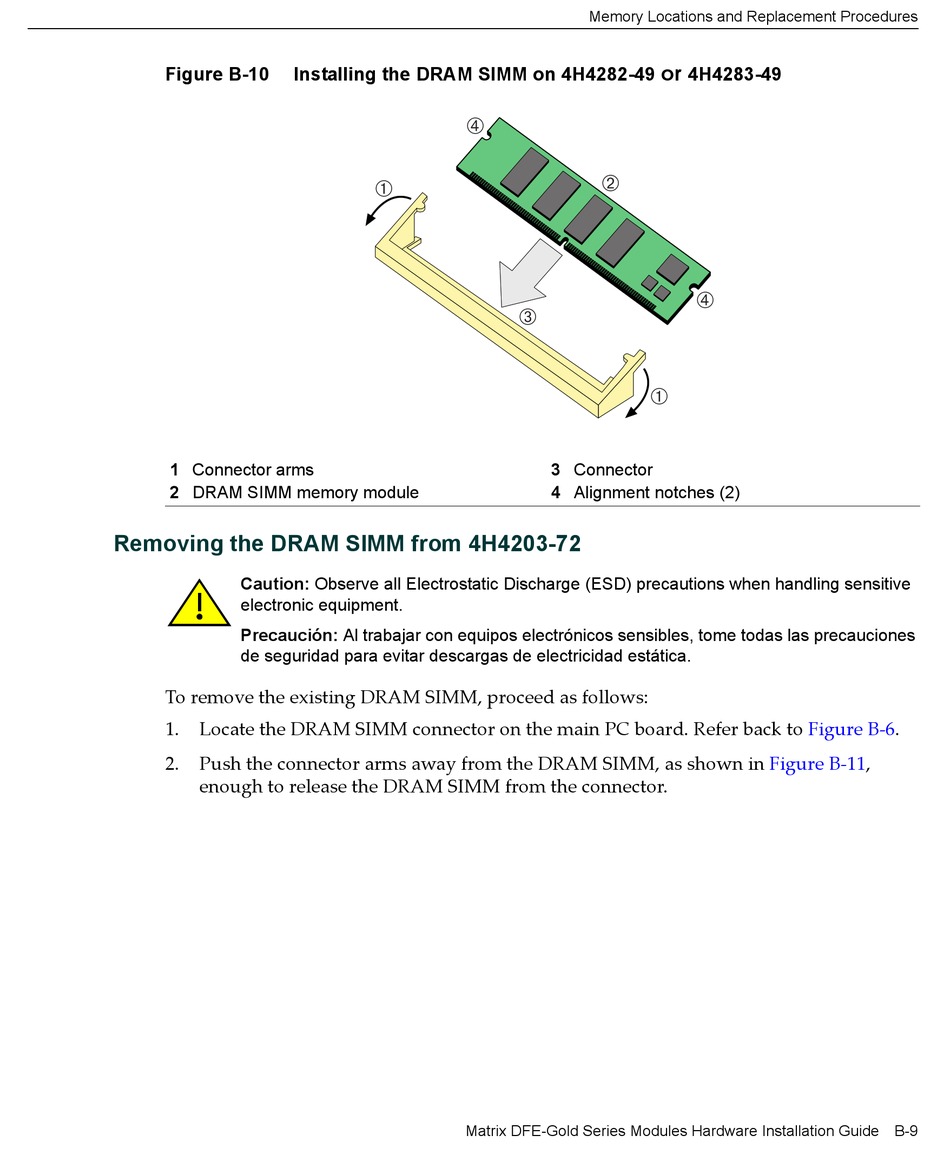

Figure B-10
1 Connector arms
2 DRAM SIMM memory module
Removing the DRAM SIMM from 4H4203-72
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
To remove the existing DRAM SIMM, proceed as follows:
1. Locate the DRAM SIMM connector on the main PC board. Refer back to Figure
2. Push the connector arms away from the DRAM SIMM, as shown in Figure
enough to release the DRAM SIMM from the connector.
Installing the DRAM SIMM on 4H4282-49
Ã
À
Matrix DFE-Gold Series Modules Hardware Installation Guide B-9
Memory Locations and Replacement Procedures
or
4H4283-49
Á
Ã
Â
À
3 Connector
4 Alignment notches (2)
B‐6.
B‐11,
