Using LANVIEW
Viewing the Receive and Transmit Activity on 4H4284-49
On the 4H4284‐49 DFE‐Gold module, you can view the receive and transmit activity on
the RX and TX LEDs. However, only one group of 12 ports may be viewed at a time on the
4H4284‐49.
To view the receive and transmit activity on a group of segments, press the GROUP
SELECT button (see Figure
time the GROUP SELECT button is pressed, the GROUP LED lights up in sequence,
indicating which group is selected. The receive and transmit activity for that group of
segments is then indicated by the RX and TX LEDs for each port.

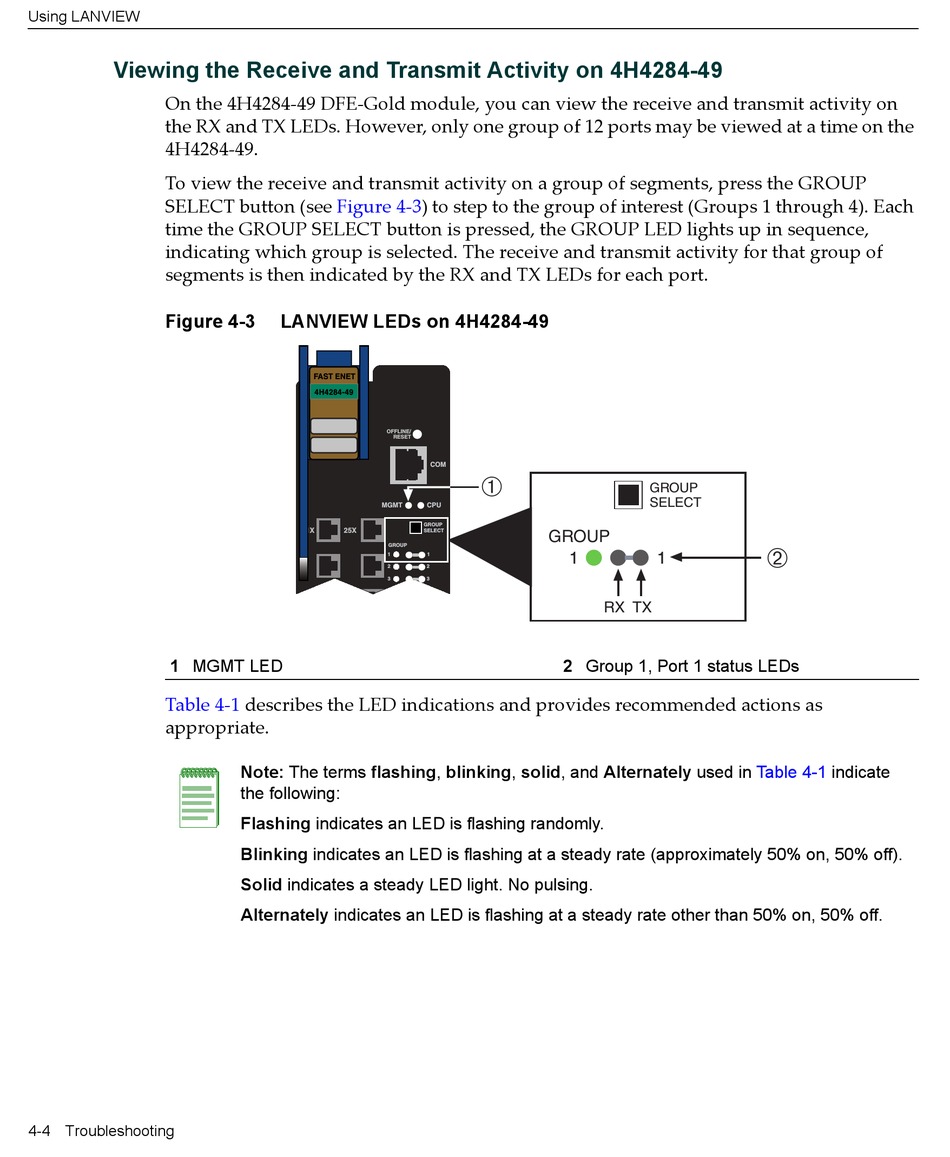

Figure 4-3
1 MGMT LED
Table
appropriate.
4-4 Troubleshooting

LANVIEW LEDs on 4H4284-49

4‐1 describes the LED indications and provides recommended actions as
Note: The terms flashing, blinking, solid, and Alternately used in
the following:
Flashing indicates an LED is flashing randomly.
Blinking indicates an LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid indicates a steady LED light. No pulsing.
Alternately indicates an LED is flashing at a steady rate other than 50% on, 50% off.
4‐3) to step to the group of interest (Groups 1 through 4). Each
À
2 Group 1, Port 1 status LEDs
Á
Table 4-1 indicate
