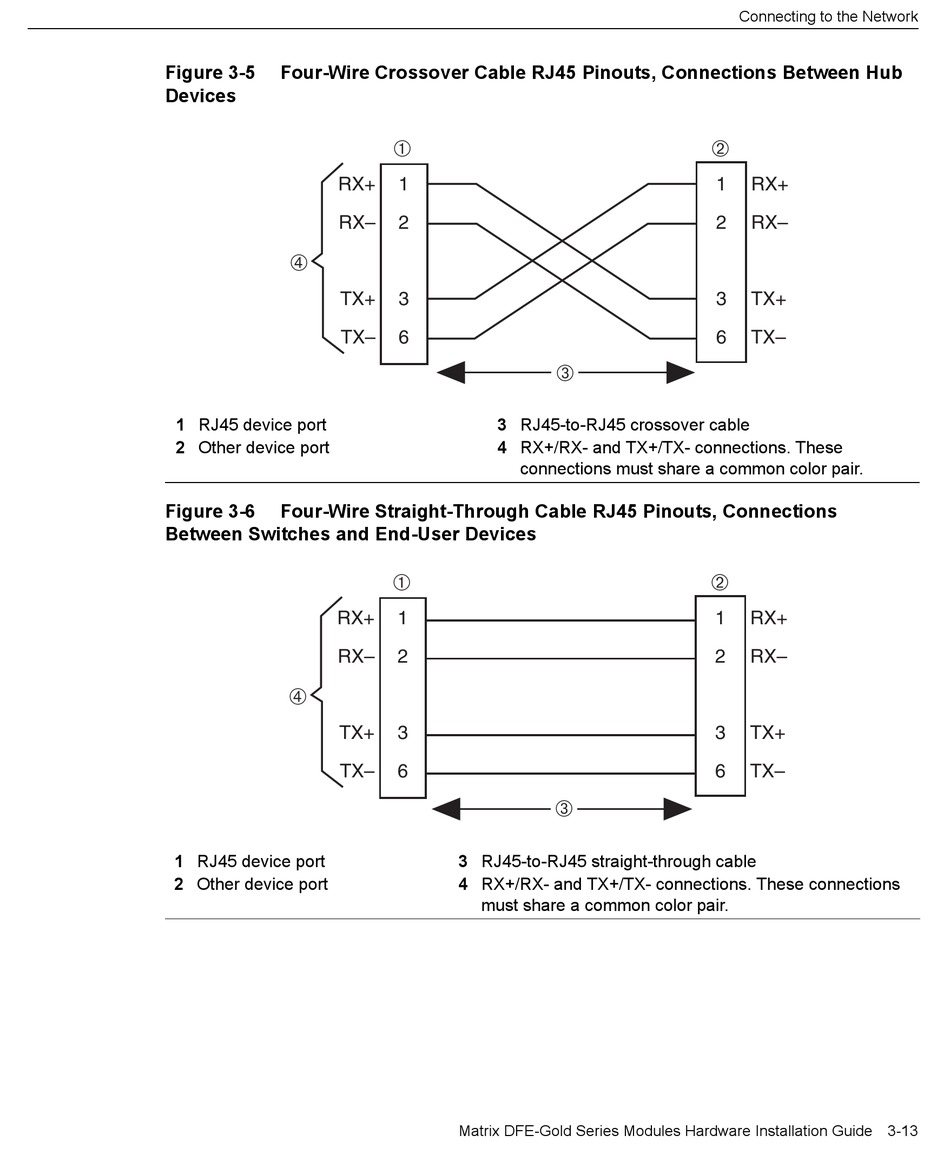

Figure 3-5

Four-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub

Devices

1 RJ45 device port

2 Other device port

Figure 3-6

Four-Wire Straight-Through Cable RJ45 Pinouts, Connections

Between Switches and End-User Devices

1 RJ45 device port

2 Other device port

3 RJ45-to-RJ45 crossover cable

4 RX+/RX- and TX+/TX- connections. These

connections must share a common color pair.

3 RJ45-to-RJ45 straight-through cable

4 RX+/RX- and TX+/TX- connections. These connections

must share a common color pair.

Matrix DFE-Gold Series Modules Hardware Installation Guide 3-13
