Using LANVIEW
Viewing Receive/Transmit Activity on 4H4282-49, 4H4283-49, and
4H4203-72
On the 4H4282‐49, 4H4283‐49, and 4H4203‐72 you can view the receive and transmit
activity on the RX and TX LEDs. However, only one group of 12 ports may be viewed at a
time.
To view the receive and transmit activity on a group of attached segments, press the
GROUP SELECT button (see Figure
4). Each time the GROUP SELECT button is pressed, the GROUP LED lights up in
sequence, indicating which group is selected. The receive and transmit activity for that
group of segments is then indicated by the RX and TX LEDs for each port.

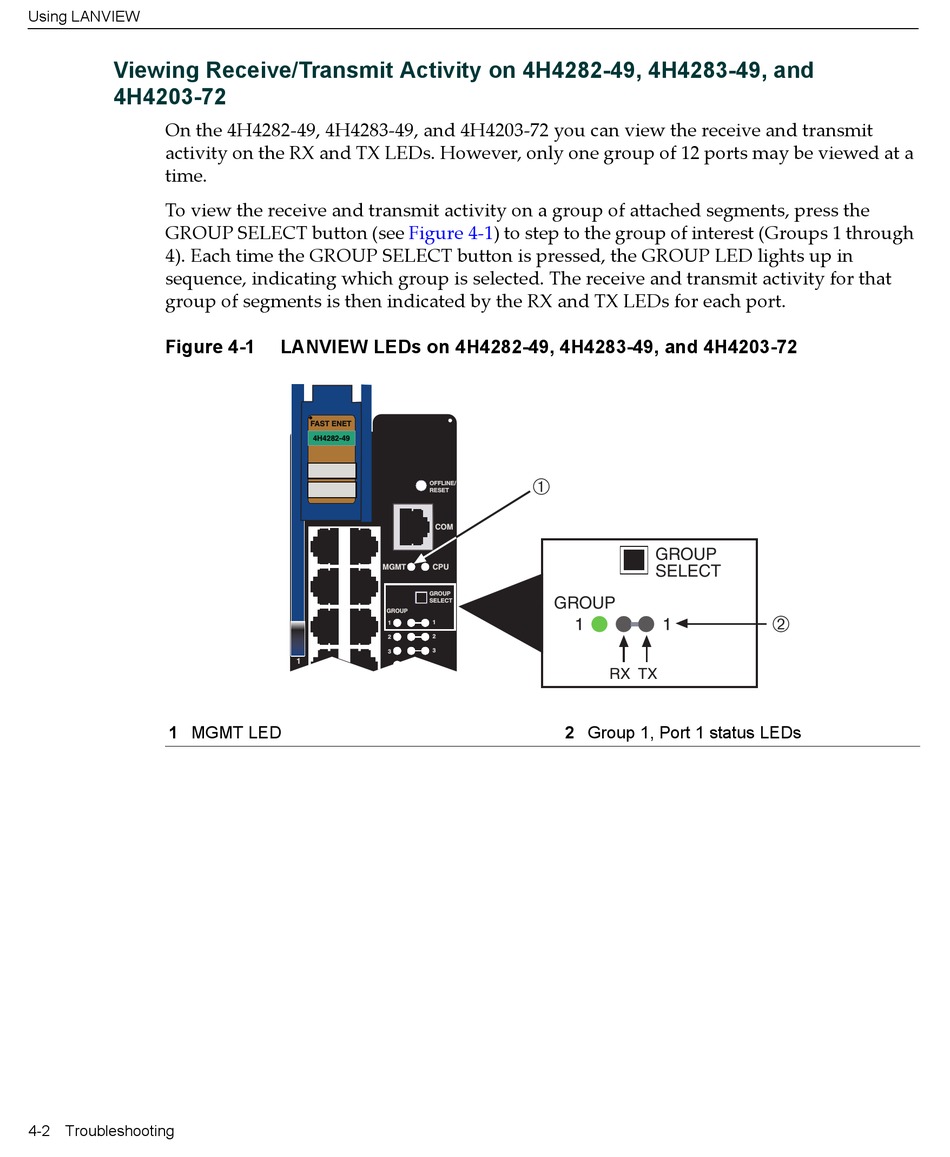

Figure 4-1
1 MGMT LED
4-2 Troubleshooting

LANVIEW LEDs on 4H4282-49, 4H4283-49, and 4H4203-72

4‐1) to step to the group of interest (Groups 1 through
À
2 Group 1, Port 1 status LEDs
Á
