Connecting A Twisted Pair Segment With Rj45 Connector - Enterasys Gold Distributed Forwarding Engine 4H4202-72 Hardware Installation Manual

Connecting to the Network

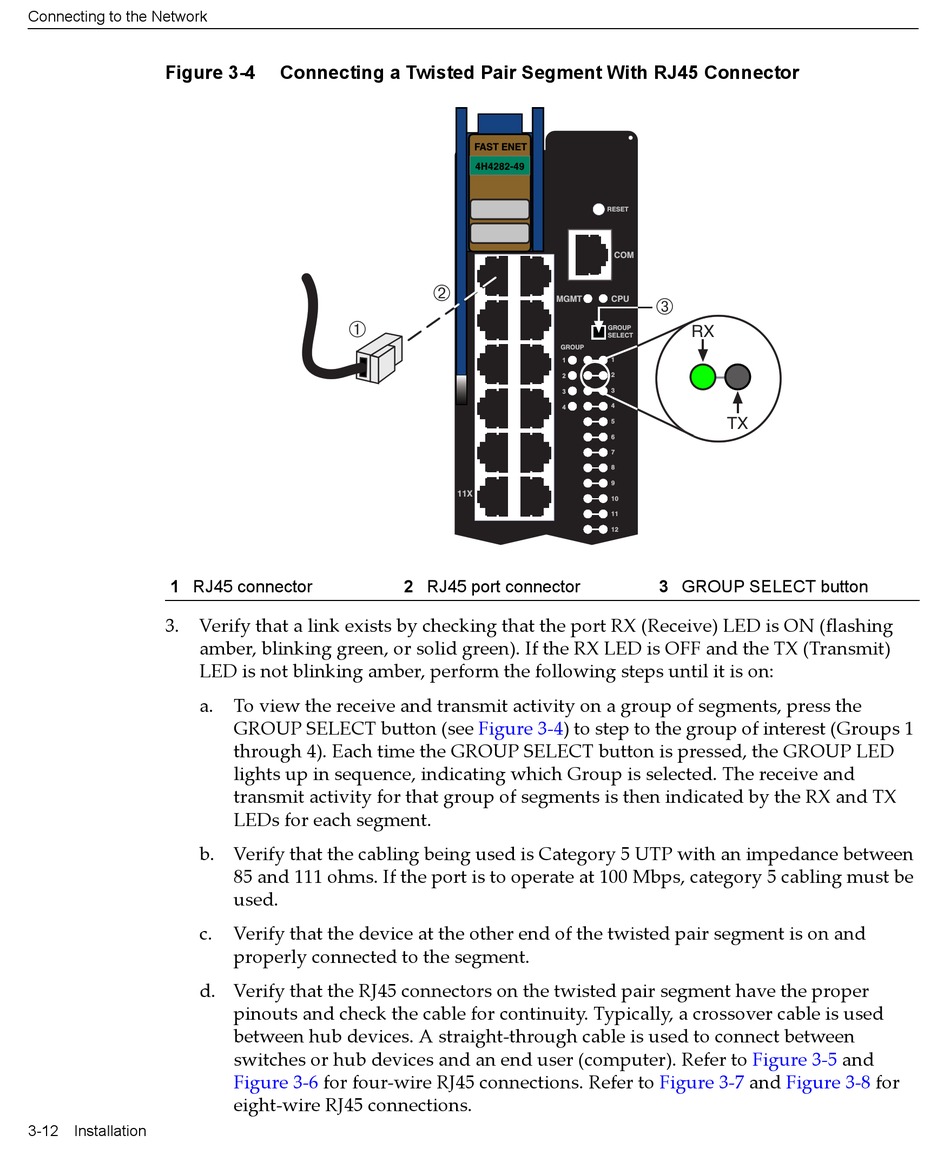

Figure 3-4
1 RJ45 connector
3. Verify that a link exists by checking that the port RX (Receive) LED is ON (flashing
amber, blinking green, or solid green). If the RX LED is OFF and the TX (Transmit)
LED is not blinking amber, perform the following steps until it is on:
a.
b. Verify that the cabling being used is Category 5 UTP with an impedance between
c.
d. Verify that the RJ45 connectors on the twisted pair segment have the proper
3-12 Installation

Connecting a Twisted Pair Segment With RJ45 Connector

À
2 RJ45 port connector
To view the receive and transmit activity on a group of segments, press the
GROUP SELECT button (see Figure
through 4). Each time the GROUP SELECT button is pressed, the GROUP LED
lights up in sequence, indicating which Group is selected. The receive and
transmit activity for that group of segments is then indicated by the RX and TX
LEDs for each segment.
85 and 111 ohms. If the port is to operate at 100 Mbps, category 5 cabling must be
used.
Verify that the device at the other end of the twisted pair segment is on and
properly connected to the segment.
pinouts and check the cable for continuity. Typically, a crossover cable is used
between hub devices. A straight‐through cable is used to connect between
switches or hub devices and an end user (computer). Refer to Figure
Figure 3‐6 for four‐wire RJ45 connections. Refer to Figure 3‐7 and Figure
eight‐wire RJ45 connections.
Á
3‐4) to step to the group of interest (Groups 1
Â
3 GROUP SELECT button
3‐5 and
3‐8 for
