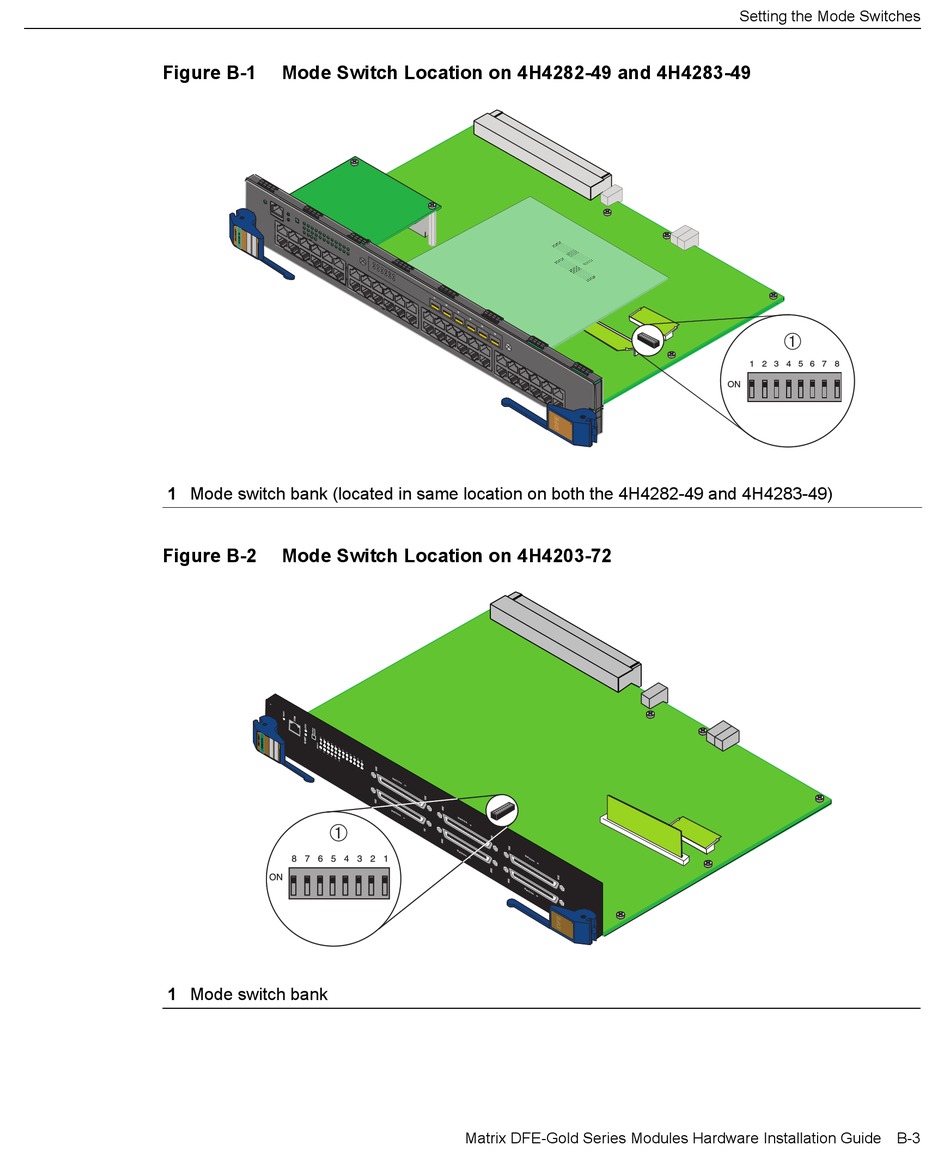

Figure B-1

Mode Switch Location on 4H4282-49 and 4H4283-49

1 Mode switch bank (located in same location on both the 4H4282-49 and 4H4283-49)

Figure B-2

1 Mode switch bank

Matrix DFE-Gold Series Modules Hardware Installation Guide B-3

Setting the Mode Switches

➀

1 2 3 4 5 6 7 8
