Memory Locations and Replacement Procedures

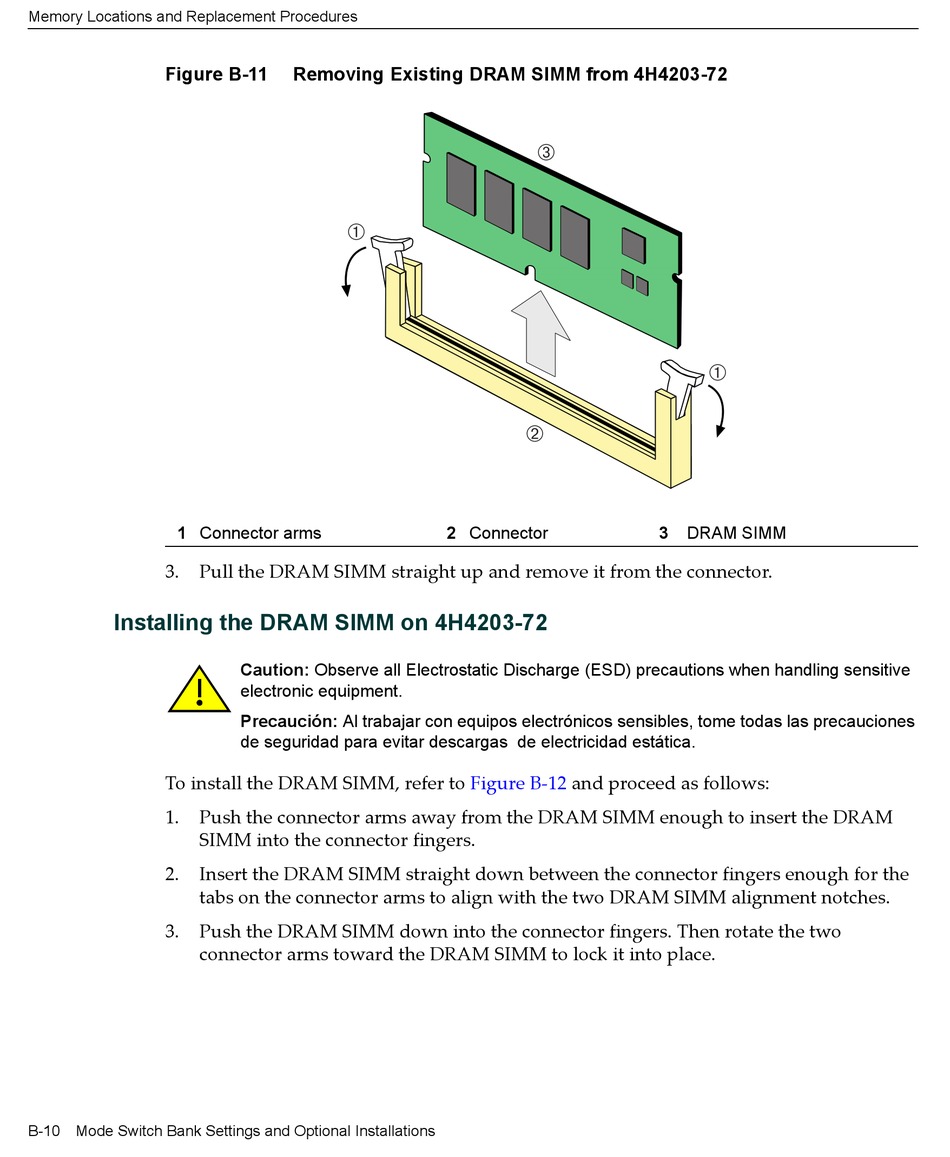

Figure B-11
1 Connector arms
3. Pull the DRAM SIMM straight up and remove it from the connector.
Installing the DRAM SIMM on 4H4203-72
To install the DRAM SIMM, refer to Figure
1. Push the connector arms away from the DRAM SIMM enough to insert the DRAM
SIMM into the connector fingers.
2. Insert the DRAM SIMM straight down between the connector fingers enough for the
tabs on the connector arms to align with the two DRAM SIMM alignment notches.
3. Push the DRAM SIMM down into the connector fingers. Then rotate the two
connector arms toward the DRAM SIMM to lock it into place.
B-10 Mode Switch Bank Settings and Optional Installations

Removing Existing DRAM SIMM from 4H4203-72

À
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
Â
Á
2 Connector
B‐12 and proceed as follows:
À
3 DRAM SIMM
