When these parameters are set, the Local Management password screen will display.
Refer to the Enterasys Matrix DFE‐Gold Series Configuration Guide for further information.

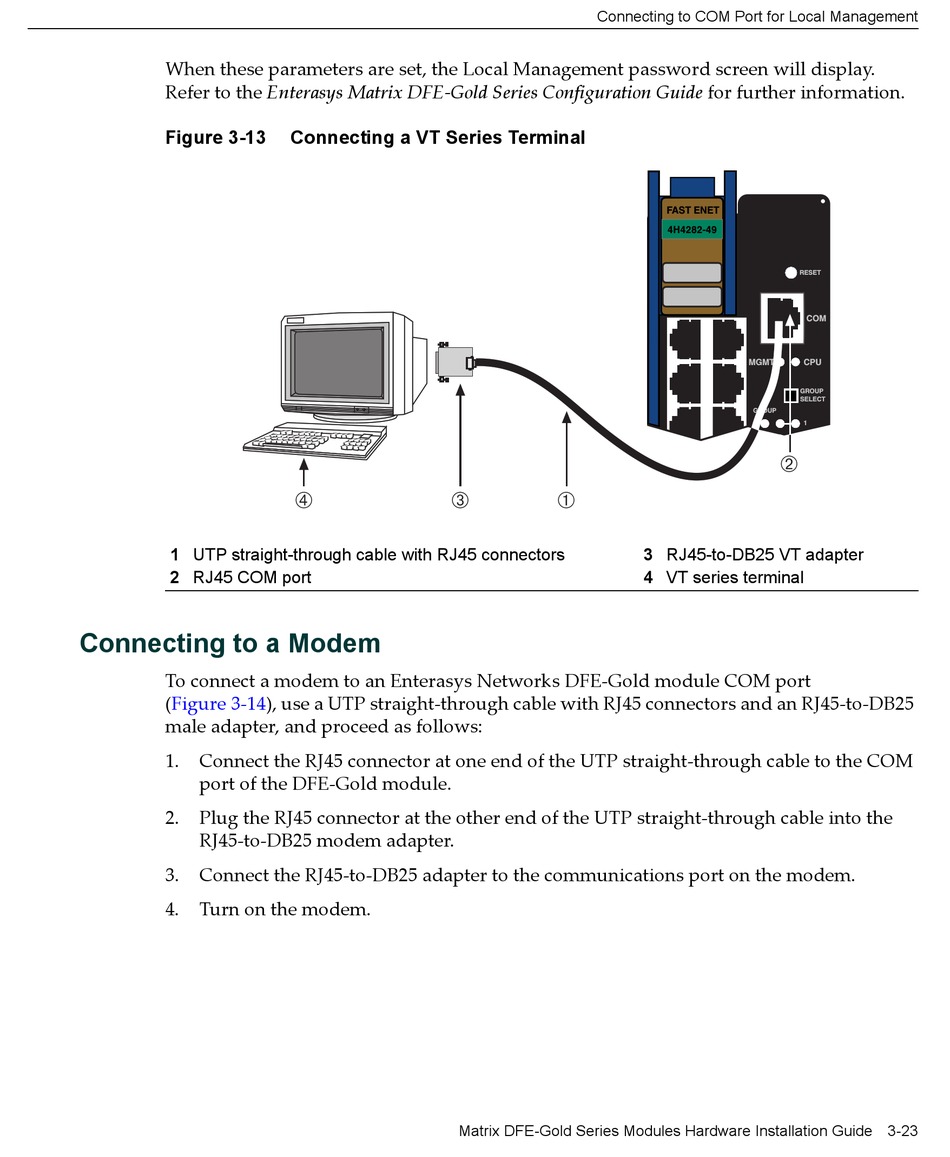

Figure 3-13
1 UTP straight-through cable with RJ45 connectors
2 RJ45 COM port

Connecting to a Modem

To connect a modem to an Enterasys Networks DFE‐Gold module COM port
(Figure 3‐14), use a UTP straight‐through cable with RJ45 connectors and an RJ45‐to‐DB25
male adapter, and proceed as follows:
1. Connect the RJ45 connector at one end of the UTP straight‐through cable to the COM
port of the DFE‐Gold module.
2. Plug the RJ45 connector at the other end of the UTP straight‐through cable into the
RJ45‐to‐DB25 modem adapter.
3. Connect the RJ45‐to‐DB25 adapter to the communications port on the modem.
4. Turn on the modem.

Connecting a VT Series Terminal

à Â
Matrix DFE-Gold Series Modules Hardware Installation Guide 3-23
Connecting to COM Port for Local Management
À
3 RJ45-to-DB25 VT adapter
4 VT series terminal
Á
