Connecting to COM Port for Local Management

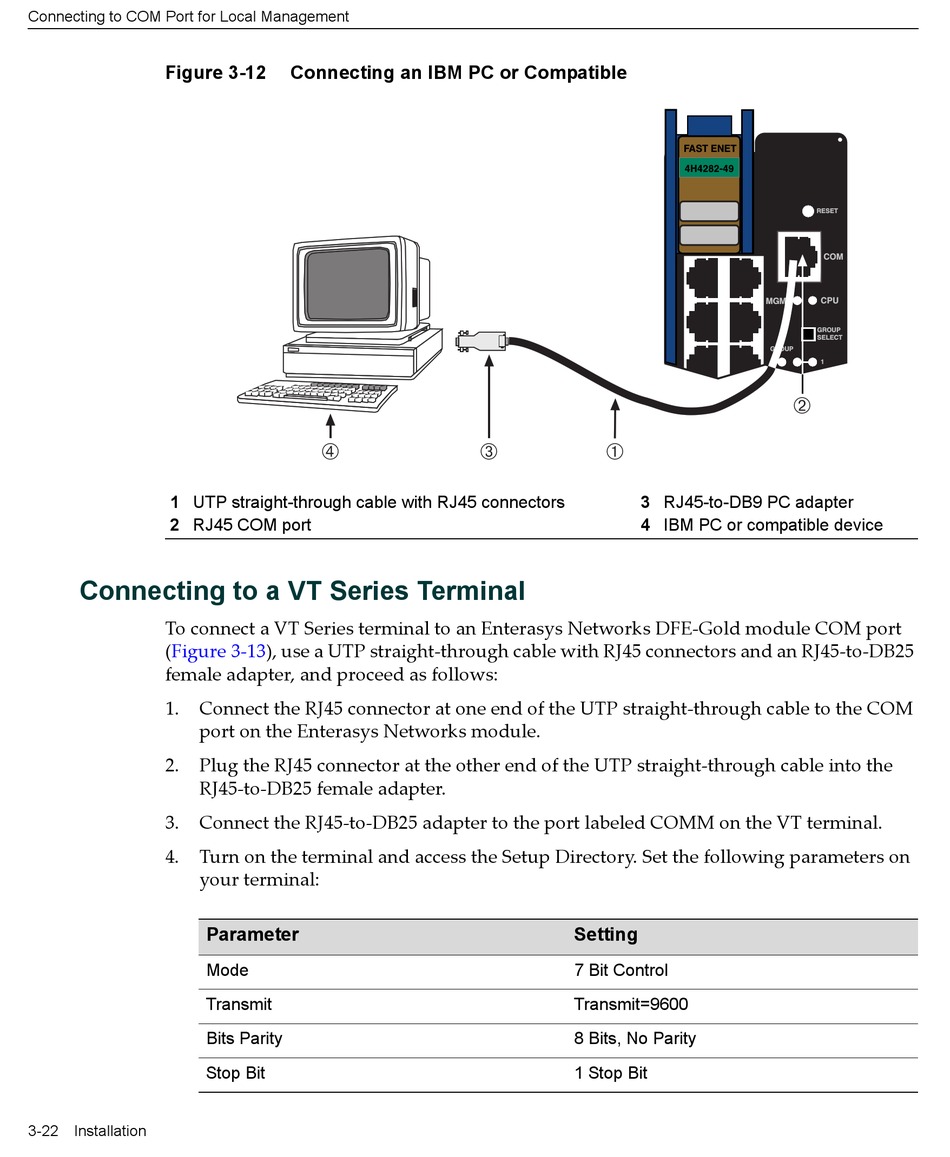

Figure 3-12
1 UTP straight-through cable with RJ45 connectors
2 RJ45 COM port

Connecting to a VT Series Terminal

To connect a VT Series terminal to an Enterasys Networks DFE‐Gold module COM port
(Figure
female adapter, and proceed as follows:
1. Connect the RJ45 connector at one end of the UTP straight‐through cable to the COM
port on the Enterasys Networks module.
2. Plug the RJ45 connector at the other end of the UTP straight‐through cable into the
RJ45‐to‐DB25 female adapter.
3. Connect the RJ45‐to‐DB25 adapter to the port labeled COMM on the VT terminal.
4. Turn on the terminal and access the Setup Directory. Set the following parameters on
your terminal:
Parameter
Mode
Transmit
Bits Parity
Stop Bit
3-22 Installation

Connecting an IBM PC or Compatible

Ã
3‐13), use a UTP straight‐through cable with RJ45 connectors and an RJ45‐to‐DB25
 3 RJ45-to-DB9 PC adapter
4 IBM PC or compatible device
Setting
7 Bit Control
Transmit=9600
8 Bits, No Parity
1 Stop Bit
Á
