Connecting A Fiber-Optic Segment To Mt-Rj Front Panel Connector - Enterasys Gold Distributed Forwarding Engine 4H4202-72 Hardware Installation Manual

Note: Leave the protective covers in place when the connectors are not in use to prevent
contamination.
Caution: Do not touch the ends of the fiber-optic strands, and do not let the ends come in
contact with dust, dirt, or other contaminants. Contamination of cable ends causes
problems in data transmissions. If the ends of the fiber-optic strands become
contaminated, use a canned duster to blow the surfaces clean. A cleaning swab saturated
with optical-grade isopropyl alcohol may also be used to clean the ends.
Precaución: No toque los extremos de los cables de fibra óptica y evite su contacto con el
polvo, la suciedad o con cualquier otro contaminante. Si los extremos de los cables se
ensucian, es posible que la transmisión de datos se vea afectada. Si nota que los
extremos de los cables de fibra óptica se ensucian, utilice aire comprimido para limpiarlos.
También puede limpiarlos con un estropajo embebido en alcohol isopropílico.
2. Insert the MT‐RJ cable connector into the MT‐RJ front panel connector until it clicks
into place.
Note: To remove the MT-RJ cable connector, press on its release tab and pull it out of the
MT‐RJ front panel connector

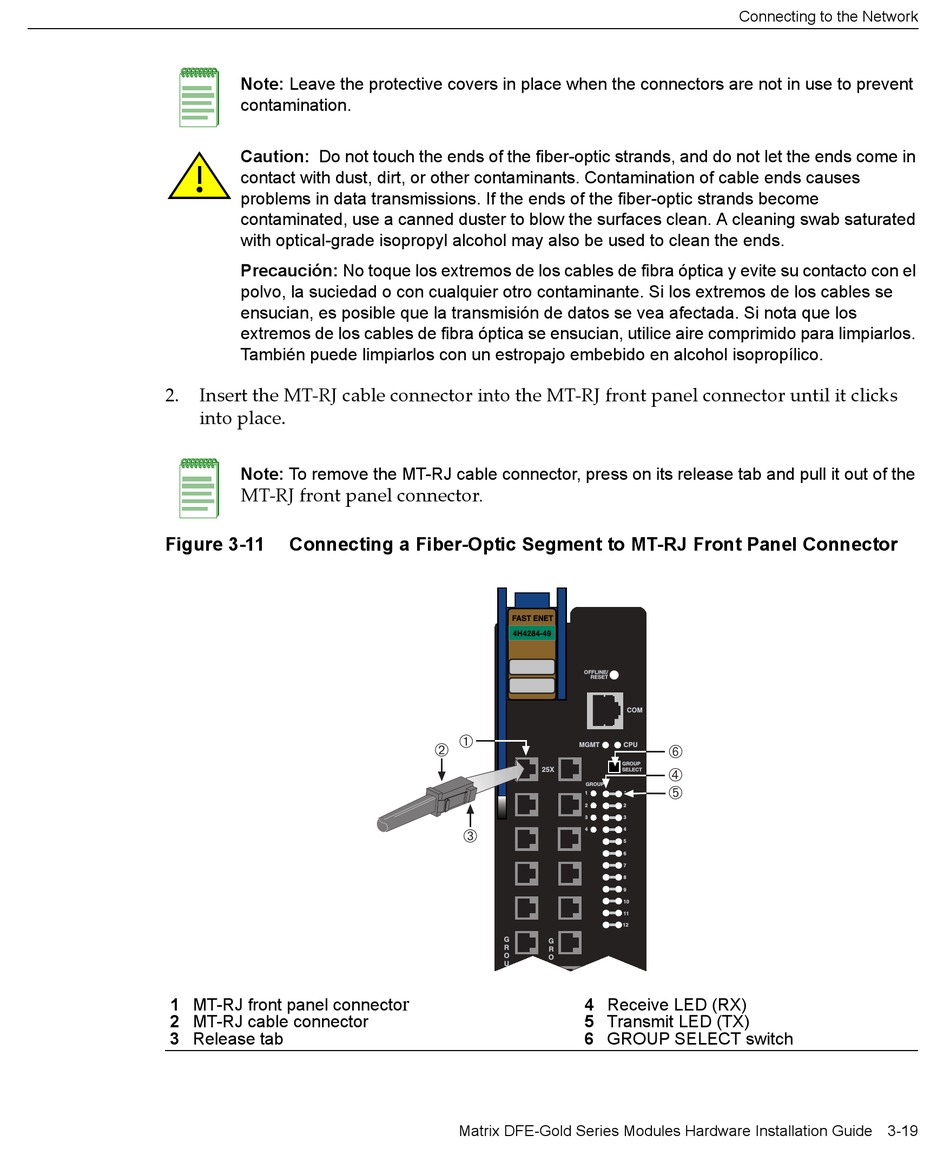

Figure 3-11

Connecting a Fiber-Optic Segment to MT-RJ Front Panel Connector

1 MT-RJ front panel connecto
2 MT-RJ cable connector
3 Release tab
.
À
Á
Â
r
Matrix DFE-Gold Series Modules Hardware Installation Guide 3-19
Connecting to the Network
Å
Ã
Ä
4 Receive LED (RX)
5 Transmit LED (TX)
6 GROUP SELECT switch
