The DFE-Gold Modules

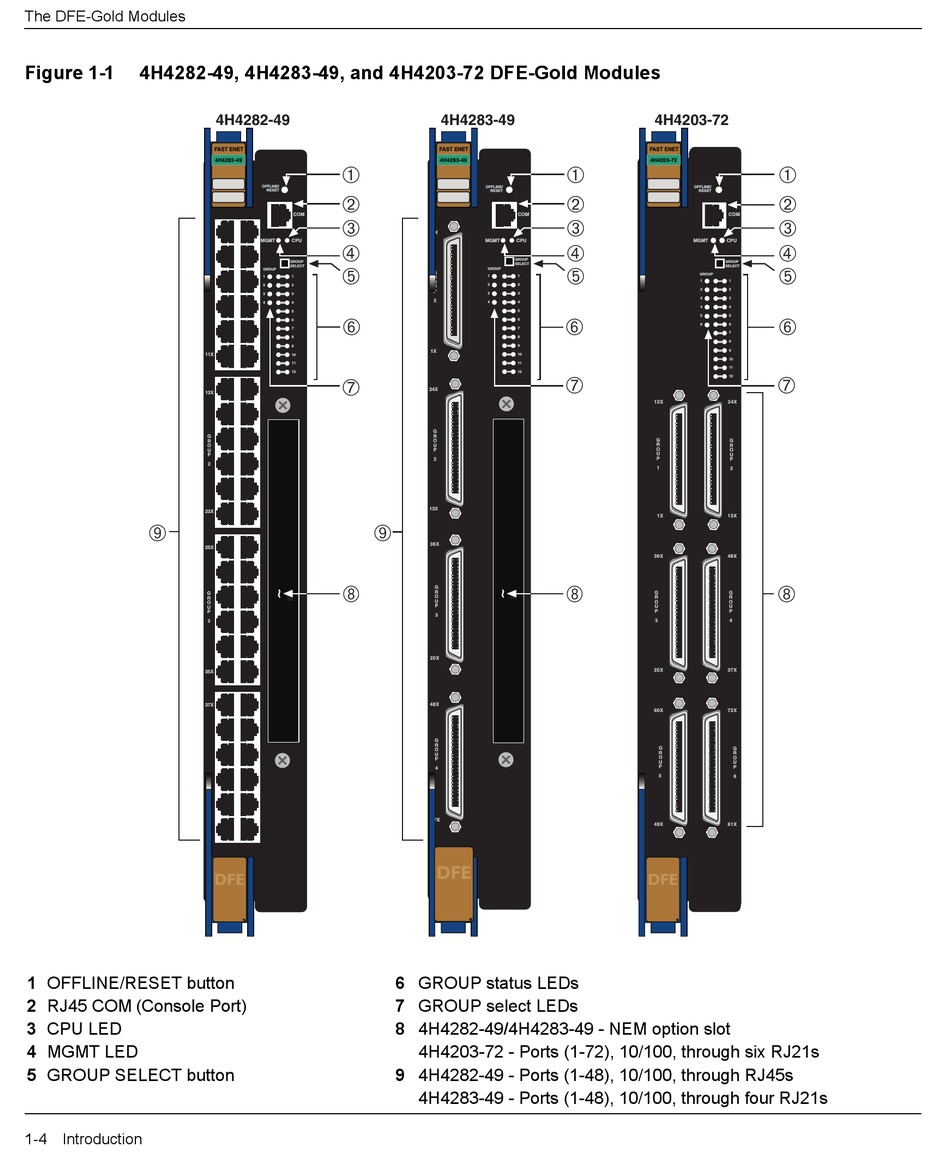

Figure 1-1

4H4282-49, 4H4283-49, and 4H4203-72 DFE-Gold Modules

1 OFFLINE/RESET button

2 RJ45 COM (Console Port)

3 CPU LED

4 MGMT LED

5 GROUP SELECT button

1-4 Introduction

DFE

6 GROUP status LEDs

7 GROUP select LEDs

8 4H4282-49/4H4283-49 - NEM option slot

4H4203-72 - Ports (1-72), 10/100, through six RJ21s

9 4H4282-49 - Ports (1-48), 10/100, through RJ45s

4H4283-49 - Ports (1-48), 10/100, through four RJ21s

DFE
