Using LANVIEW
Viewing Receive/Transmit Activity on 4H4202-72
On the 4H4202‐72, you can view the receive and transmit activity on the RX and TX LEDs.
However, only one group of 24 ports may be viewed at a time.
To view the receive and transmit activity on a group of attached segments, press the
GROUP SELECT button (see Figure 4‐2) to step to the group of interest (Groups 1
through 3). Each time the GROUP SELECT button is pressed, a GROUP LED lights up in
sequence, indicating which group is selected. The receive and transmit activity for that
group of segments is then indicated by the RX and TX LEDs for each port. Figure 4‐2
shows Group 3 selected and the location of Group 3, port 1 RX and TX LEDs.

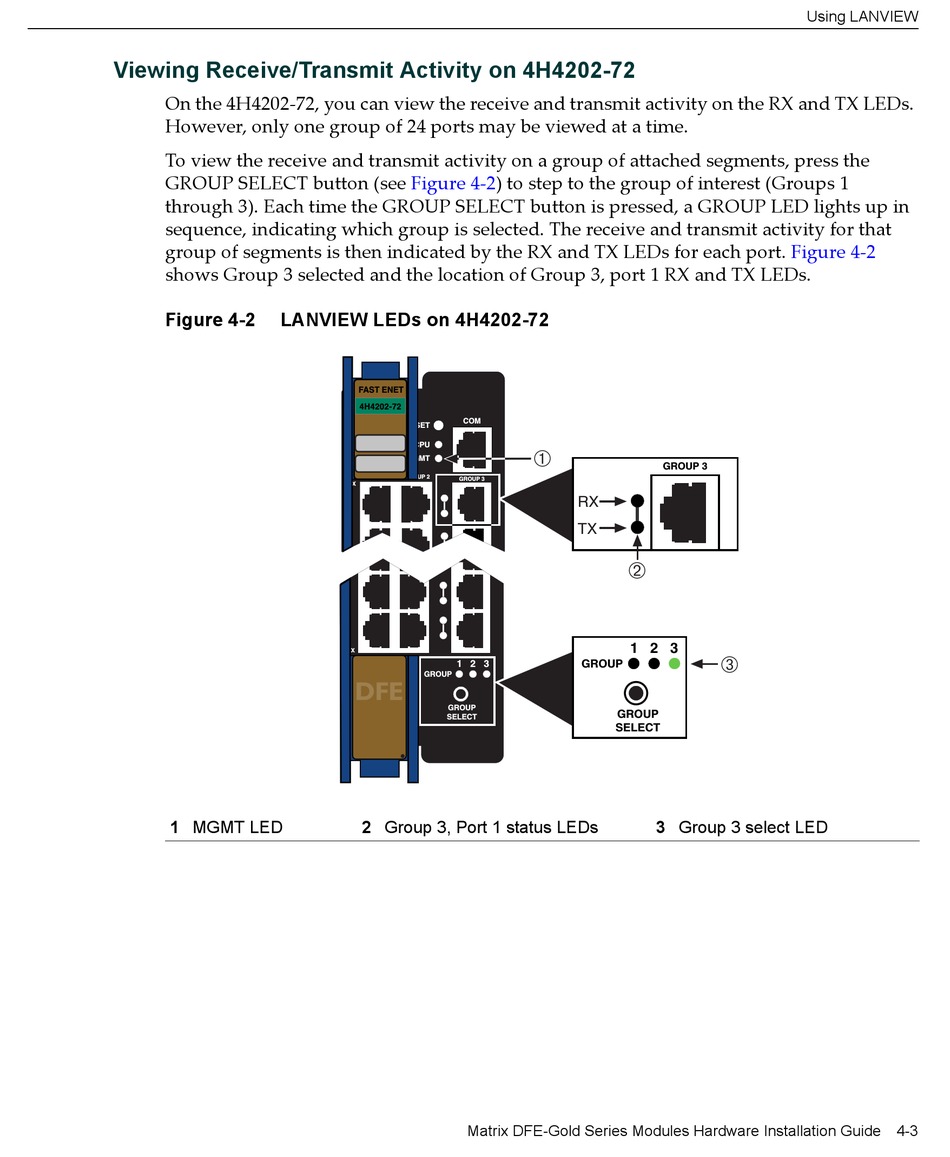

Figure 4-2

LANVIEW LEDs on 4H4202-72

À
Á
Â
DFE
1 MGMT LED 2 Group 3, Port 1 status LEDs 3 Group 3 select LED
