2-12 User's Manual

Installing Memory Module

Follow the steps below to install the memory module:
1. Turn the system power off.
2. Press the two keyboard latches so that the keyboard can be
elevated from its normal position (Figure 2-4).
3. Carefully lift the keyboard assembly out so that the mainboard is
exposed. Locate the memory sockets (Figure 2-8).
4. Position the memory module at a slight angle and fit its
connectors into the socket firmly. Push the module down and
ensure it locks into place (Figure 2-9).
5. Reinstall the keyboard assembly.

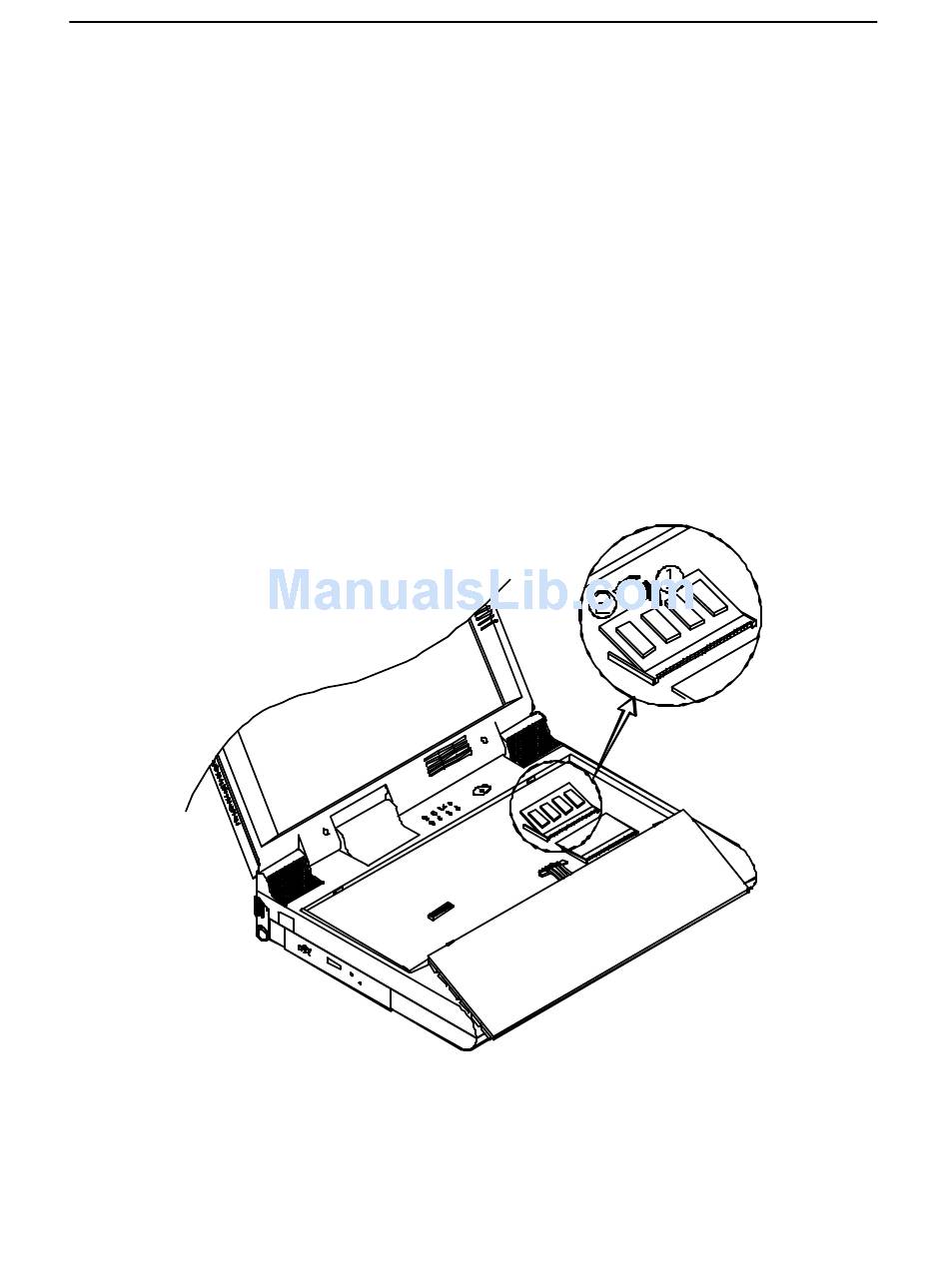

Figure 2-9
