B: Installing a Memory Module

1) Turn off the computer.
2) Turn the computer over.
3) Unscrew and remove the RAM cover (fig-
ure 4-2).

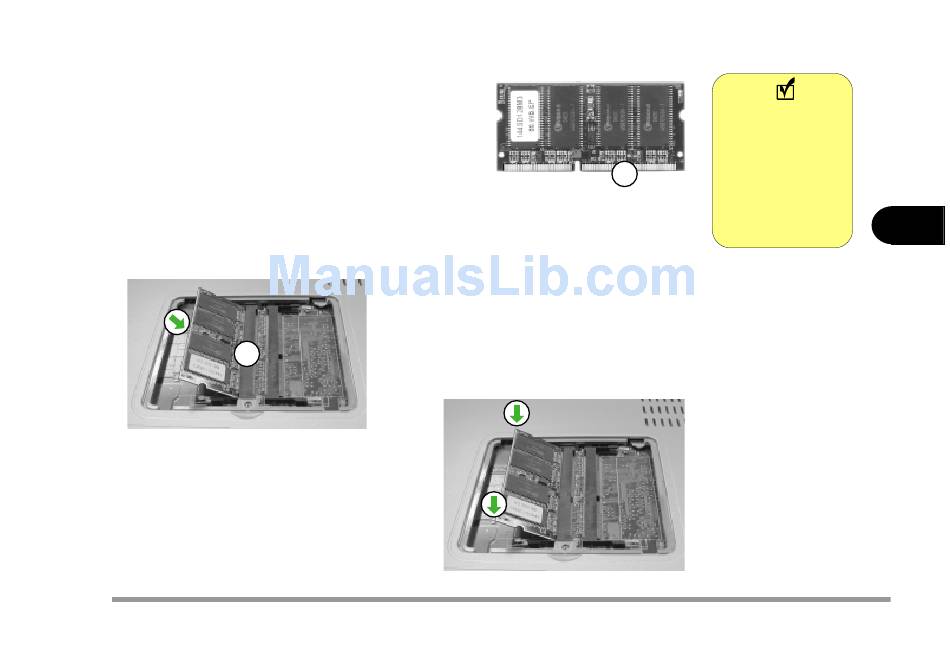

4) Insert the memory module at a slight angle
about 45° and fit its connectors firmly into
the memory slot (figure 4-6).
2
figure 4-6
5) Press down on the two edges of the
memory module and lock it into place
(figure 4-7).
6) Reinstall the RAM cover.
1
figure 4-5
1. memory connectors
2. memory socket
figure 4-7
Upgrading the Computer
Note
Make sure the
memory connec-
tors go into the
memory socket
when you are
installing the
4
memory modules.
4 - 7
