B: Installing a Memory Module

1) Turn off the computer.
2) Turn the computer over.
3) Unscrew and remove the RAM cover (fig-
ure 4-1).

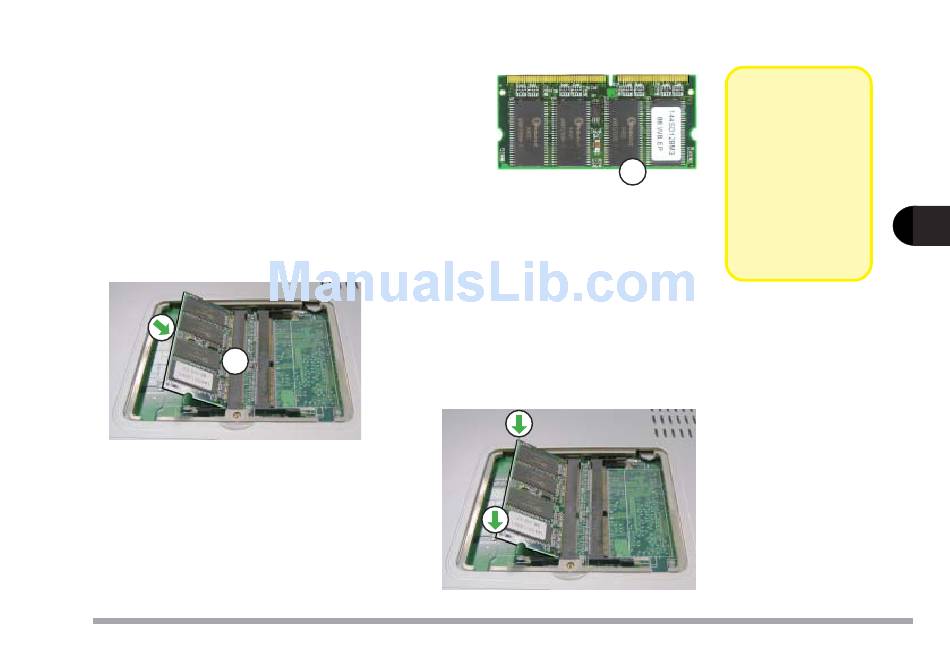

4) Insert the memory module at a slight angle
about 45° and fit its connectors firmly into
the memory slot (figure 4-5).
2
5) Press down on the two edges of the
memory module and lock it into place
(figure 4-6).
6) Reinstall the RAM cover.
figure 4-5
1
figure 4-4
1. Memory Connectors
2. Memory Socket
figure 4-6
Upgrading the Computer
! ! ! ! !
Note
Make sure the
memory connec-
tors go into the
memory socket
when you are
4
installing the
memory mod-
ules.
4 - 5
