Chapter 1: Getting Started
1-5
Battery Pack
The Notebook system can be powered by the battery pack for
continuous portable operation without an external power source
when you take it away from the office.
However, the actual
operating time will be dependent upon the application you use and
the configuration you set.
Inserting
1. Turn the Notebook over.
2. Position the battery pack at a slight angle and firmly fit it into the
Notebook.
3. Install the four screws that fasten the battery pack (Figure 1-4).
Removing
1. Turn the Notebook over.
2. Remove the four screws that fasten the battery pack.
3. Carefully lift the battery pack from the Notebook.

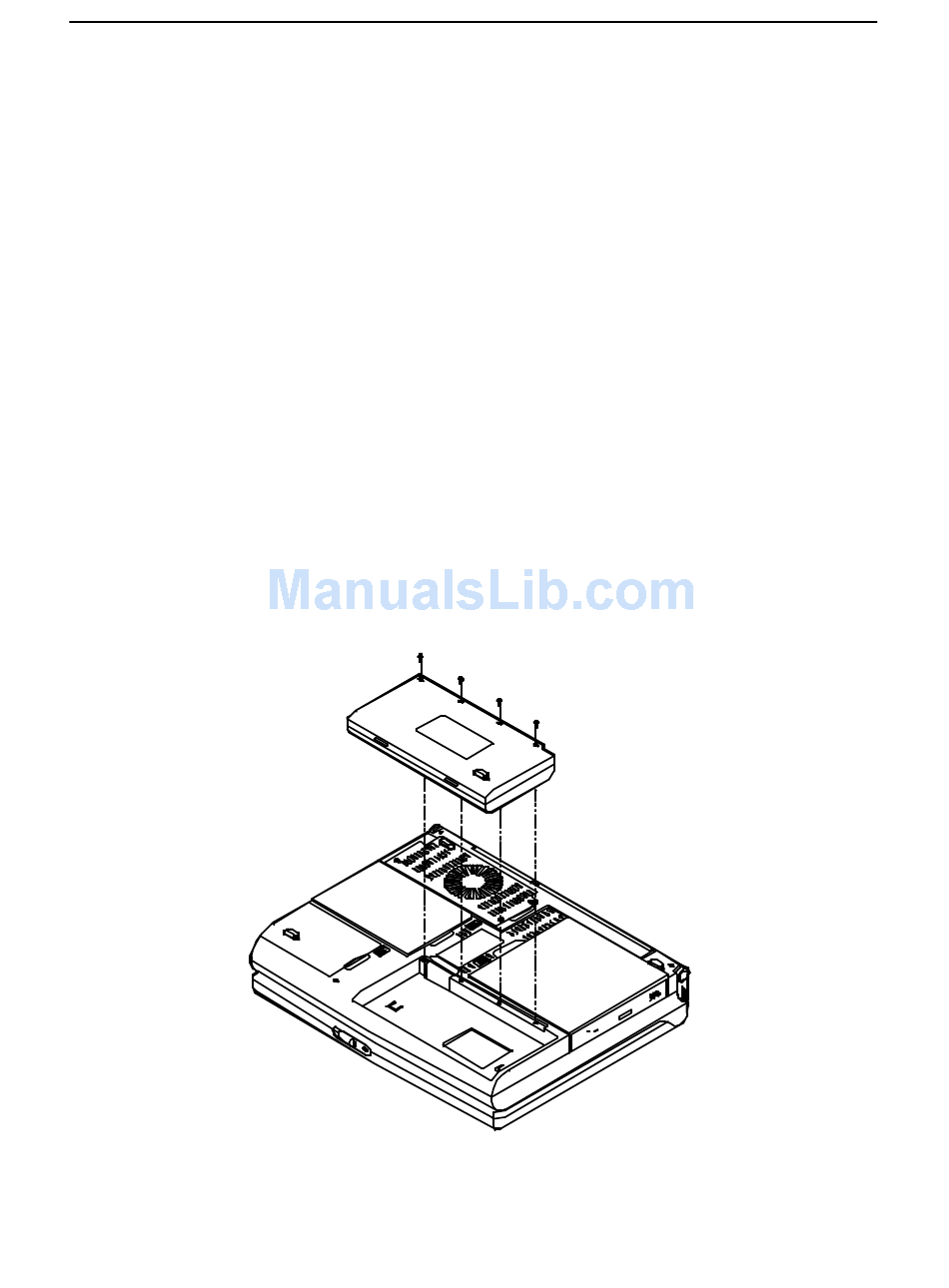

Figure 1-4
