Installing Memory Module

Follow the steps below to install the memory module:
1.
Turn the system power off.
2.
Press the two keyboard latches to elevate the keyboard from its
normal position (Figure 2-4).
3.
Carefully lift the keyboard assembly out to expose the mainboard.
Locate the memory sockets (Figure 2-7).
4.
Insert the memory module at a slight angle (45 ) and fit its connectors
into the socket firmly (Figure 2-8).
Note:
Insert Bank o first, then Bank 1.
5.
Press the two edges of the memory module to make it locked into the
place.
6.
Reinstall the keyboard assembly.
User's Manual
2-6

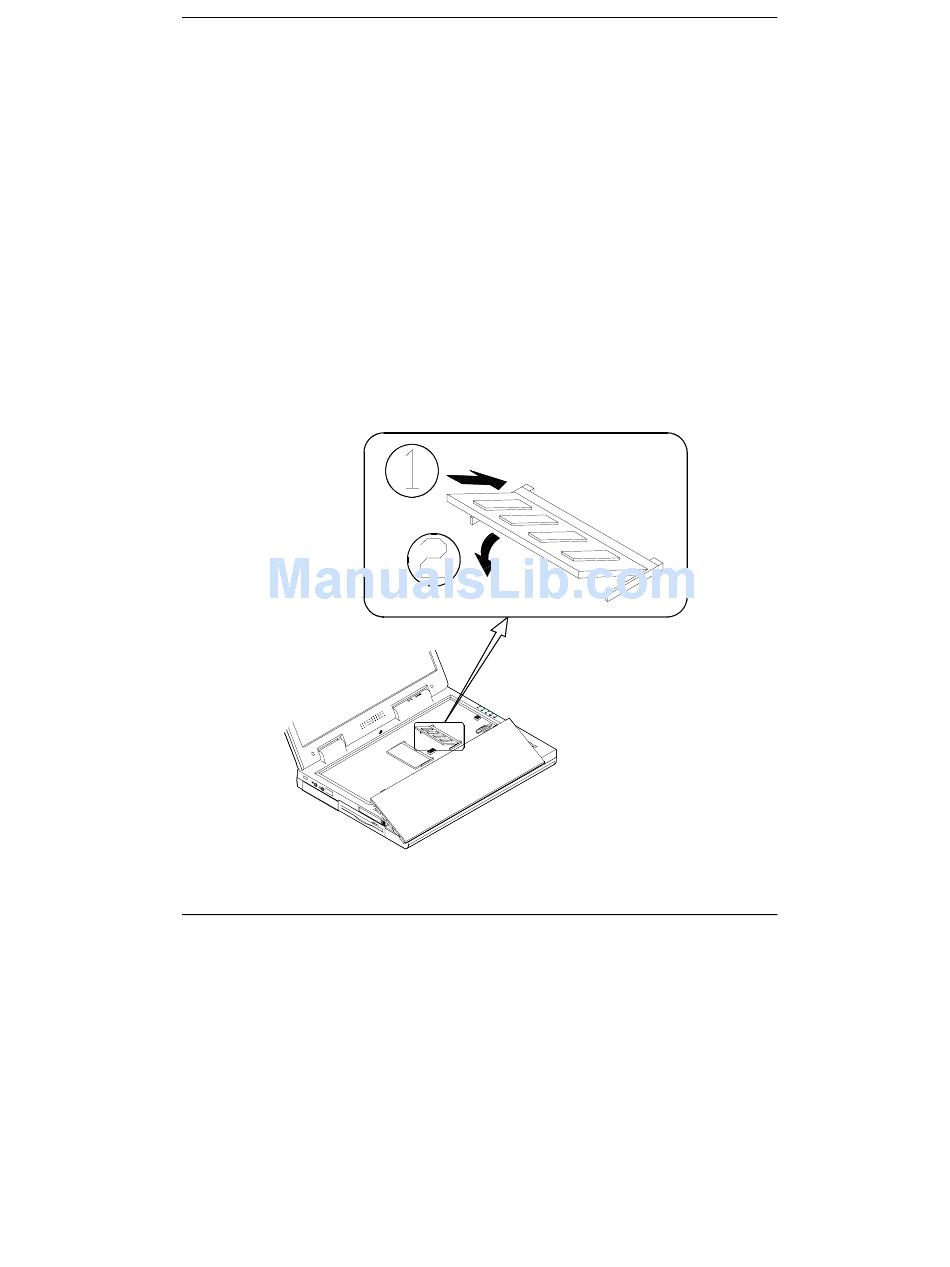

Figure 2-8
