Chapter 1: Getting Started
1-13

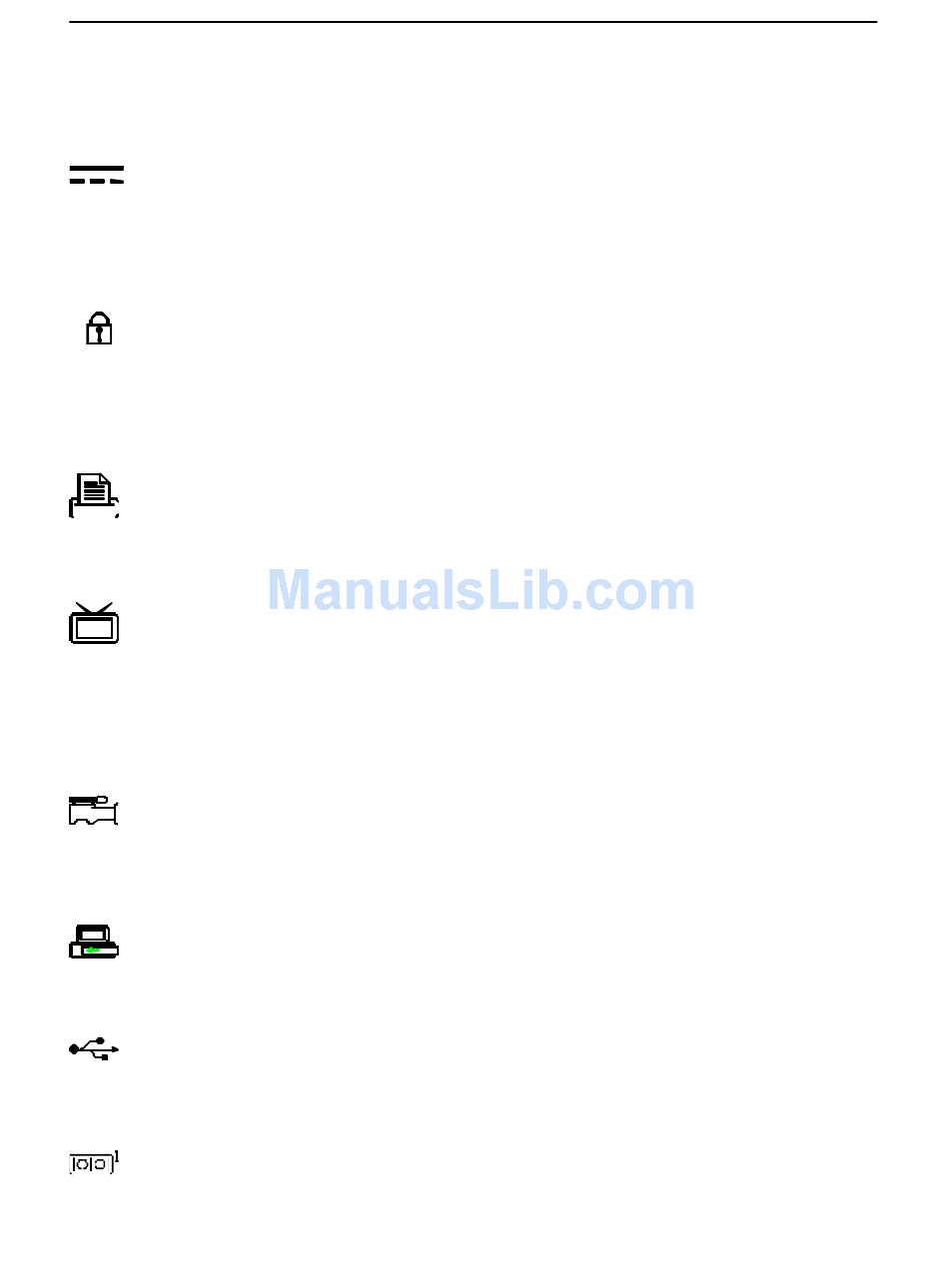

Rear View
AC-in Socket
Plug the AC adapter into this connector for power supply. To
disconnect the power adapter, pull the plug (not the cord)
directly back.
Security Connector
It is used to protect your Notebook from being stolen. Wrap
the steel cable around your desk. Next, insert the locking
device into this security connector.
Parallel Port
This parallel port supports EPP (Enhanced Parallel Port) and
ECP (Extended Capabilities Port) modes.
S-video Jack
Use this jack to transmit video signal to a TV set. You may
need to select the video standard (NTSC/PAL) for video
display (please refer to Chapter 3, Components Menu for
more information).
RCA Jack
This jack accepts analog composite signals inputted into the
system from external video devices, e.g. camera, CCD.
Expansion Port
This port is used to connect the proprietary Port Replicator.
Dual USB Ports
The dual Universal Serial Bus (USB) ports simplify the
expansion capability for peripheral devices.
Serial Port
This port is UART 16C550 compatible. It features a 9-pin
connector to connect an external mouse for example.
