System Board Drive Connections

Refer to the following illustration and table to identify the system board drive connectors.

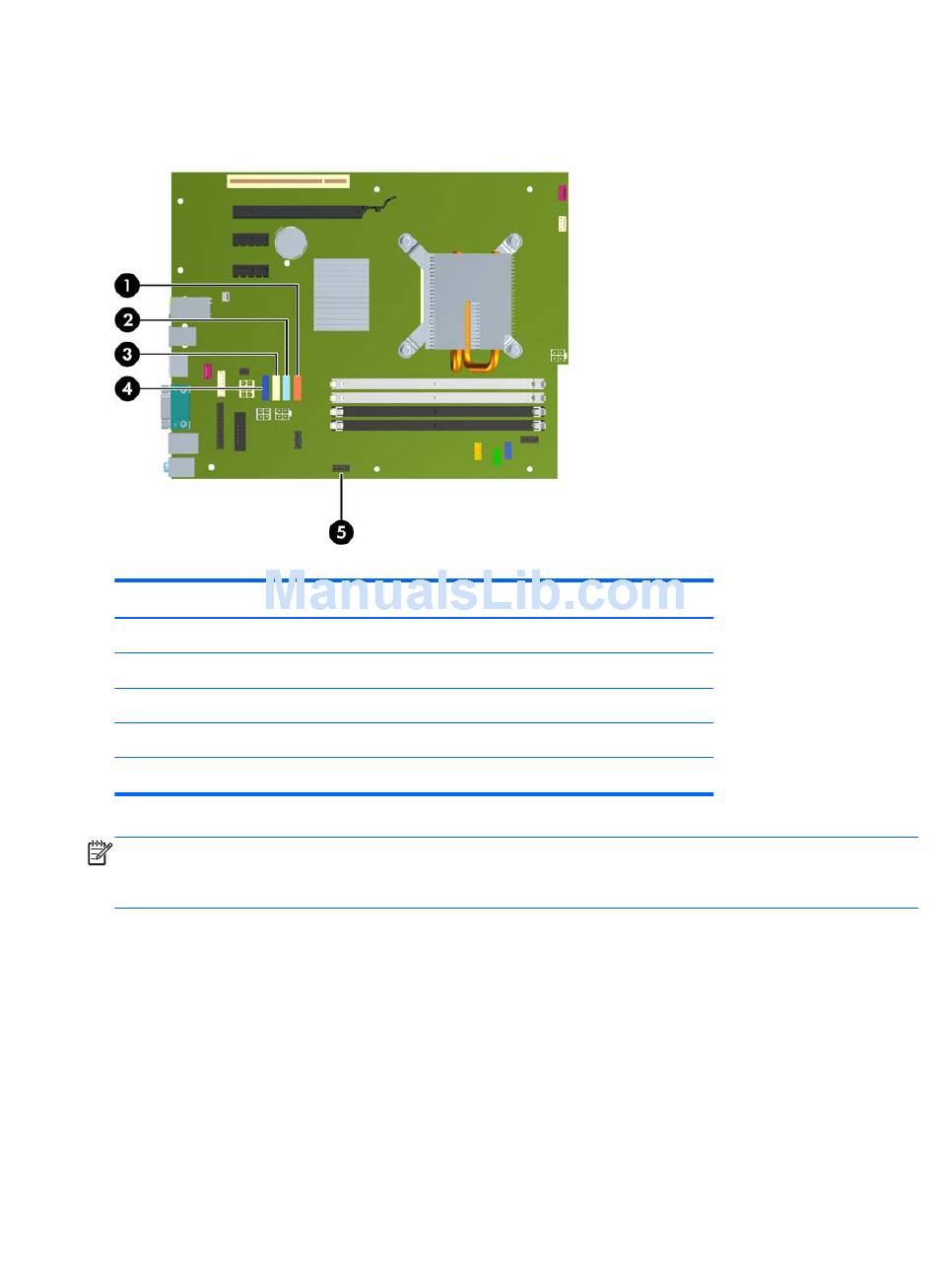

Figure 2-19
Table 2-4 System Board Drive Connections
No. System Board Connector
1 SATA3
2 SATA2
3 SATA1
4 SATA0
5 Media Card Reader
NOTE:
The orange SATA3 connector can be reconfigured as eSATA in the Computer Setup utility if
you are installing an eSATA adapter. Select Storage > Storage Options > eSATA Port to
reconfigure the SATA3 connector.
System Board Drive Connections
System Board Label
SATA3
SATA2
SATA1
SATA0
MEDIA
Color
orange
light blue
white
dark blue
black
Installing and Removing Drives
