12.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bracket on the card is aligned
with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board.

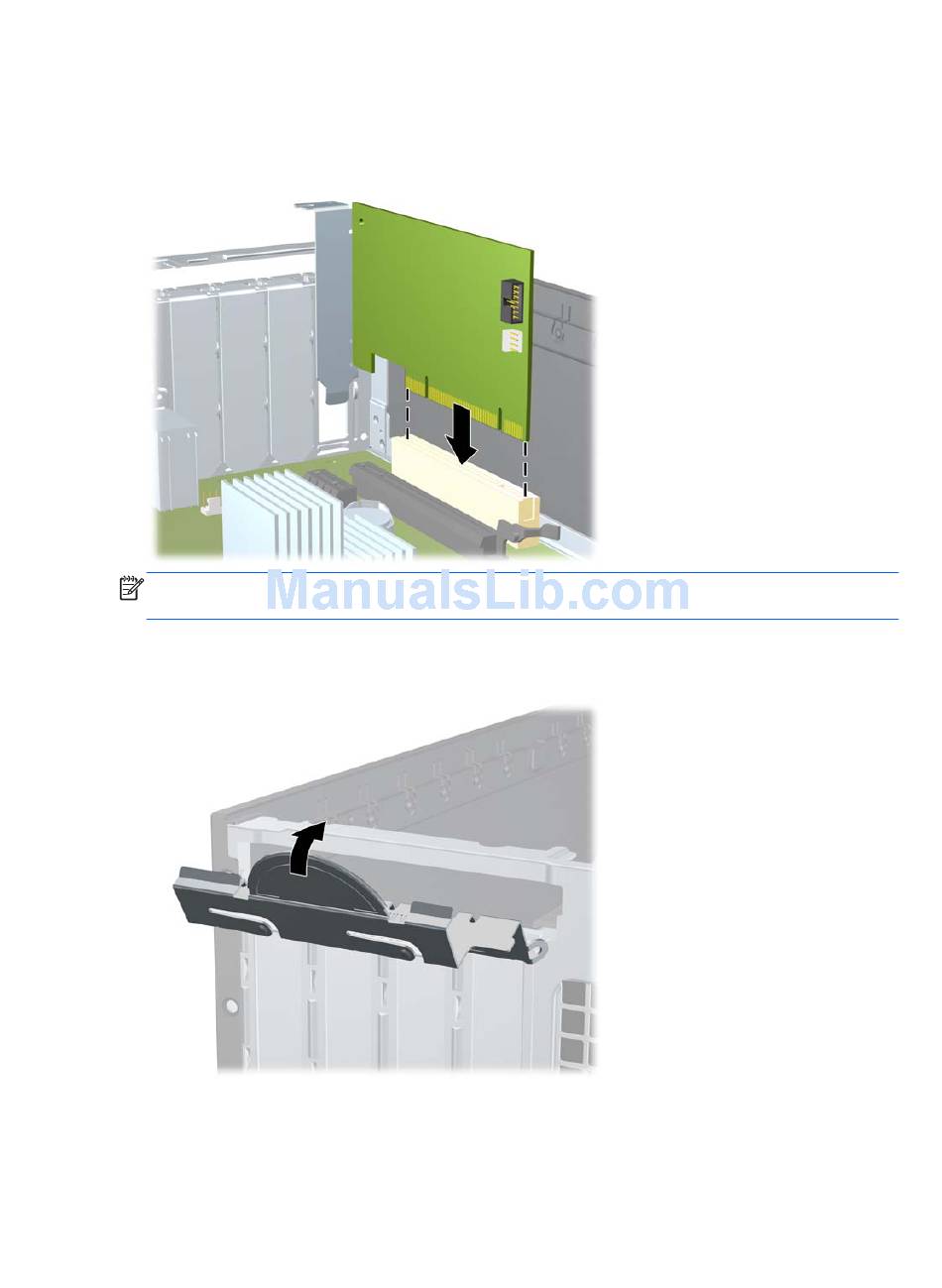

Figure 2-15
NOTE:
seats properly in the expansion card slot.
13.
Rotate the slot cover retention latch back in place to secure the expansion card.
Figure 2-16
14.
Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
15.
Replace the access panel.
26
Chapter 2 MultiSeat ms6005 Desktop Hardware Upgrades
Installing an Expansion Card
When installing an expansion card, press firmly on the card so that the whole connector
Closing the Expansion Slot Retainer
