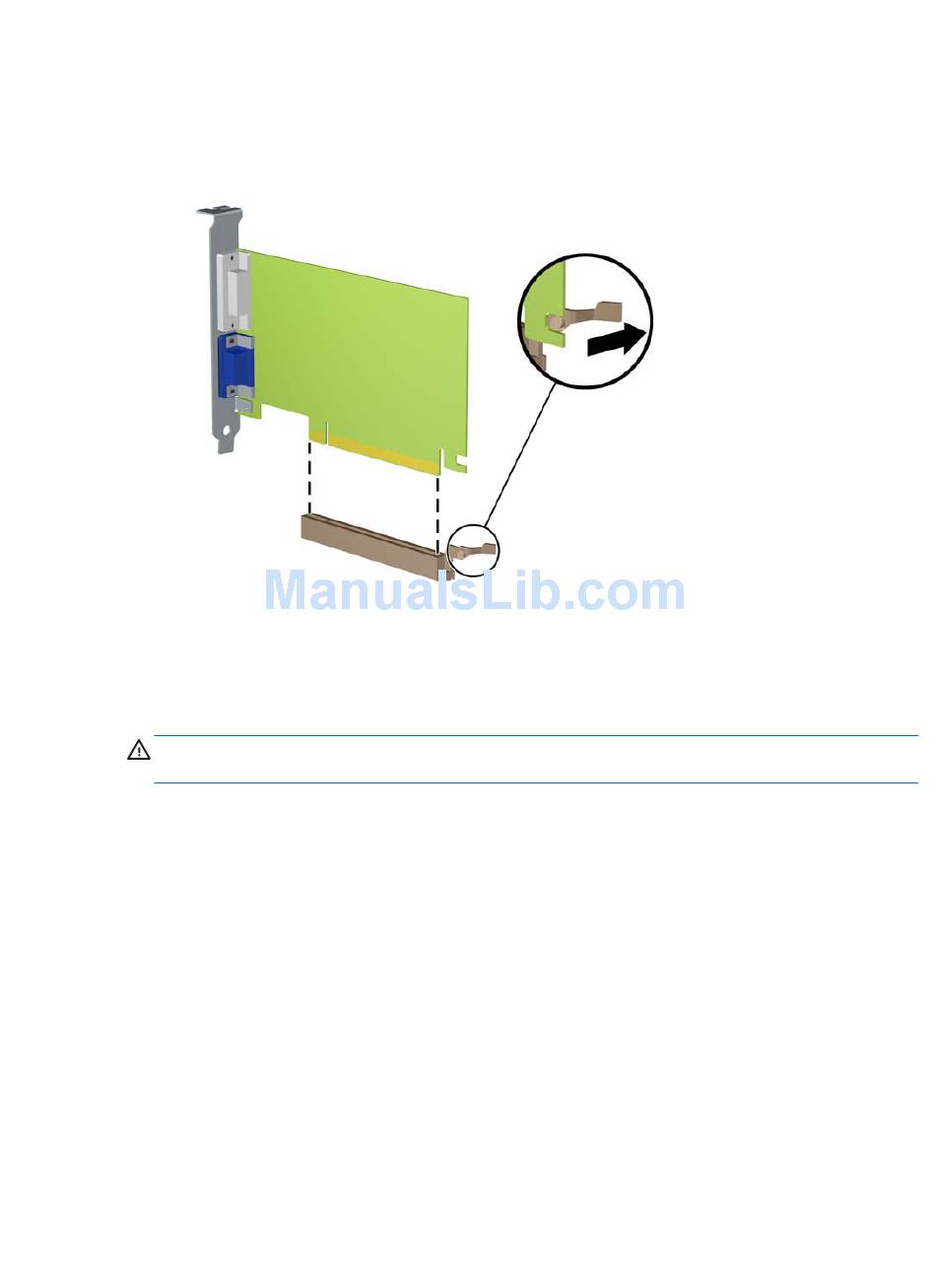

If you are removing a PCI Express x16 card, pull the retention arm on the back of the

expansion socket away from the card and carefully rock the card back and forth until the

connectors pull free from the socket. Pull the expansion card straight up from the socket then

away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape

the card against the other components.

Figure 3-13

10.

Store the removed card in anti-static packaging.

11.

If you are not installing a new expansion card, install an expansion slot cover to close the open

slot.

CAUTION:

After removing an expansion card, you must replace it with a new card or

expansion slot cover for proper cooling of internal components during operation.

Removing a PCI Express x16 Expansion Card

Removing or Installing an Expansion Card
