System Board Connections

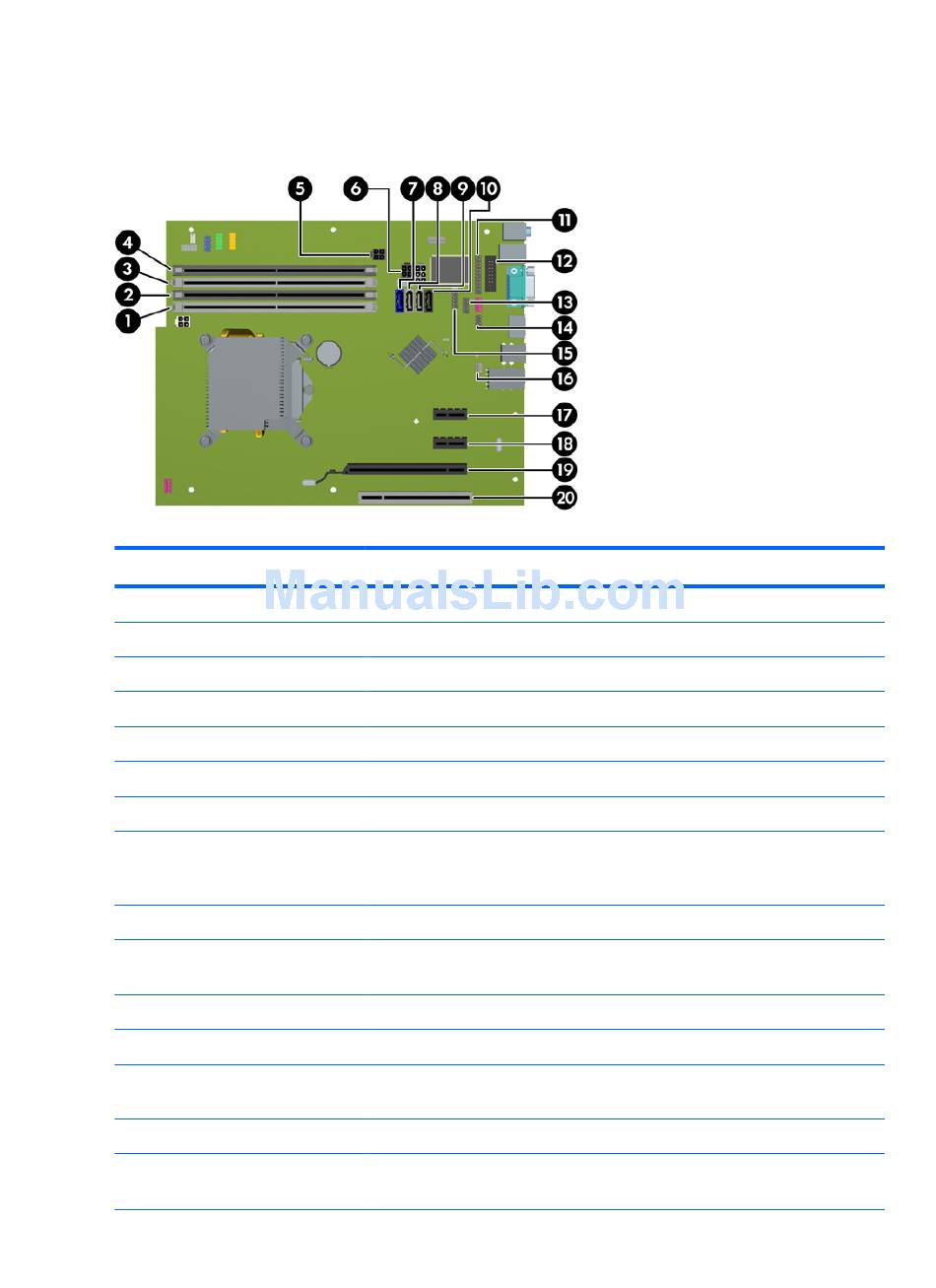

Refer to the following illustration and table to identify the system board connectors for your model.
Figure 3-7
Table 3-1 System Board Connections
No. System Board Connector
1 DIMM4 (Channel A)
2 DIMM3 (Channel A)
3 DIMM2 (Channel B)
4 DIMM1 (Channel B)
5 Power
6 Power
7 SATA 3.0
8 SATA 2.0
9 SATA 2.0
10 eSATA
11 Parallel Port
12 Serial Port
13 USB
14 Hood Lock
15 USB
System Board Connections
System Board Label
DIMM4
DIMM3
DIMM2
DIMM1
SATAPWR0
SATAPWR1
SATA0
SATA1
SATA2
ESATA
PAR
COMB
MEDIA
HLCK
MEDIA2
Color Component
white Memory Module
black Memory Module
white Memory Module
black Memory Module
black SATA Optical Drives
SATA Hard Drives
dark blue 1st Hard Drive
white 2nd Hard Drive, or 2nd Optical
Drive if an eSATA Adapter Cable
exists
white 1st Optical Drive
black eSATA Adapter Cable, or 2nd
Optical Drive
black Parallel Port
black Serial Port
black USB Device, such as a Media Card
Reader
black Hood Lock
black USB Device, such as a Media Card
Reader
