5.
If the computer is on a stand, remove the computer from the stand.
6.
Remove the access panel.
7.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
8.

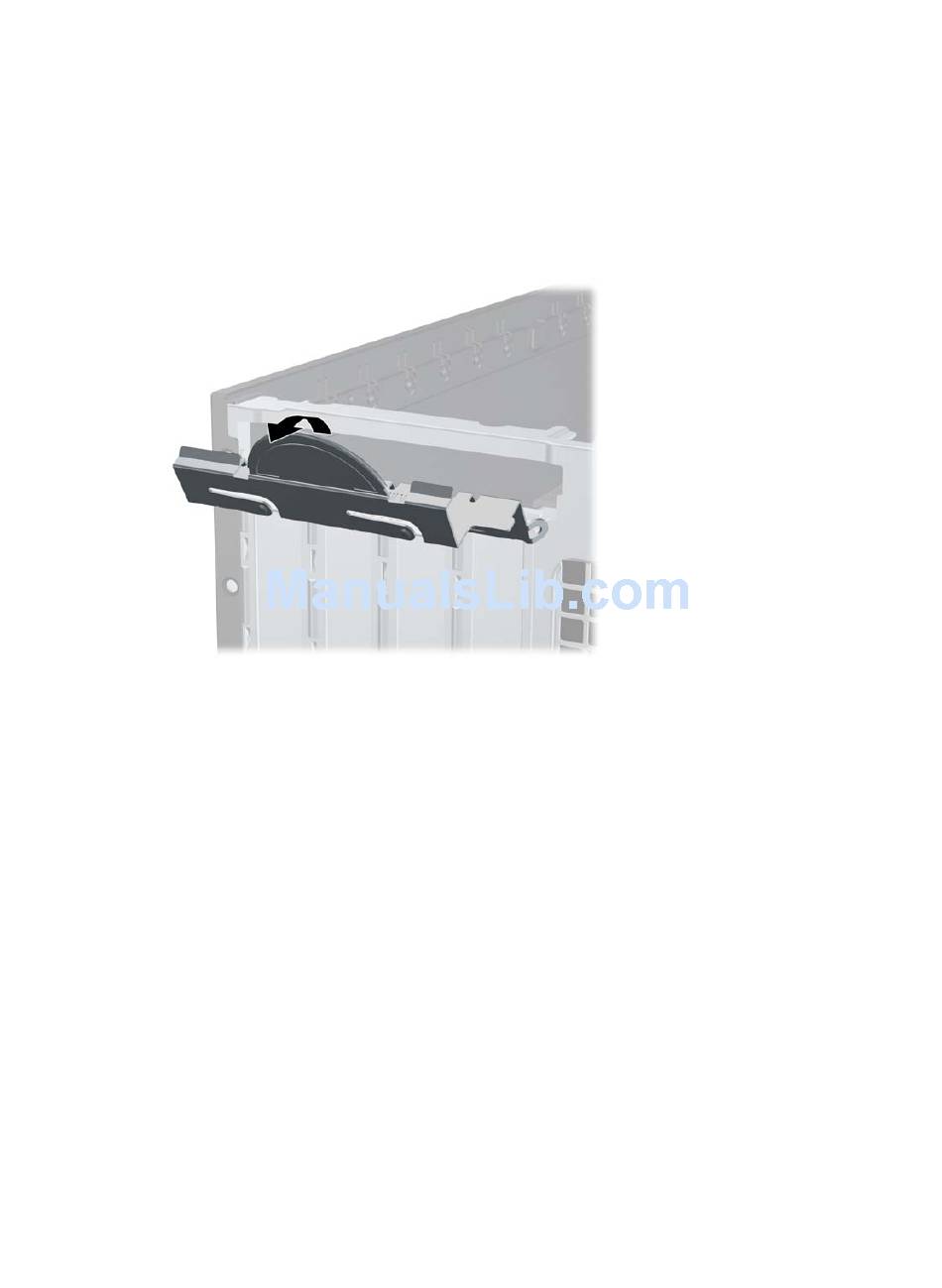

Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on the
latch and rotating the latch to the open position.
Figure 2-11
22
Chapter 2 MultiSeat ms6005 Desktop Hardware Upgrades
Opening the Expansion Slot Retainer
