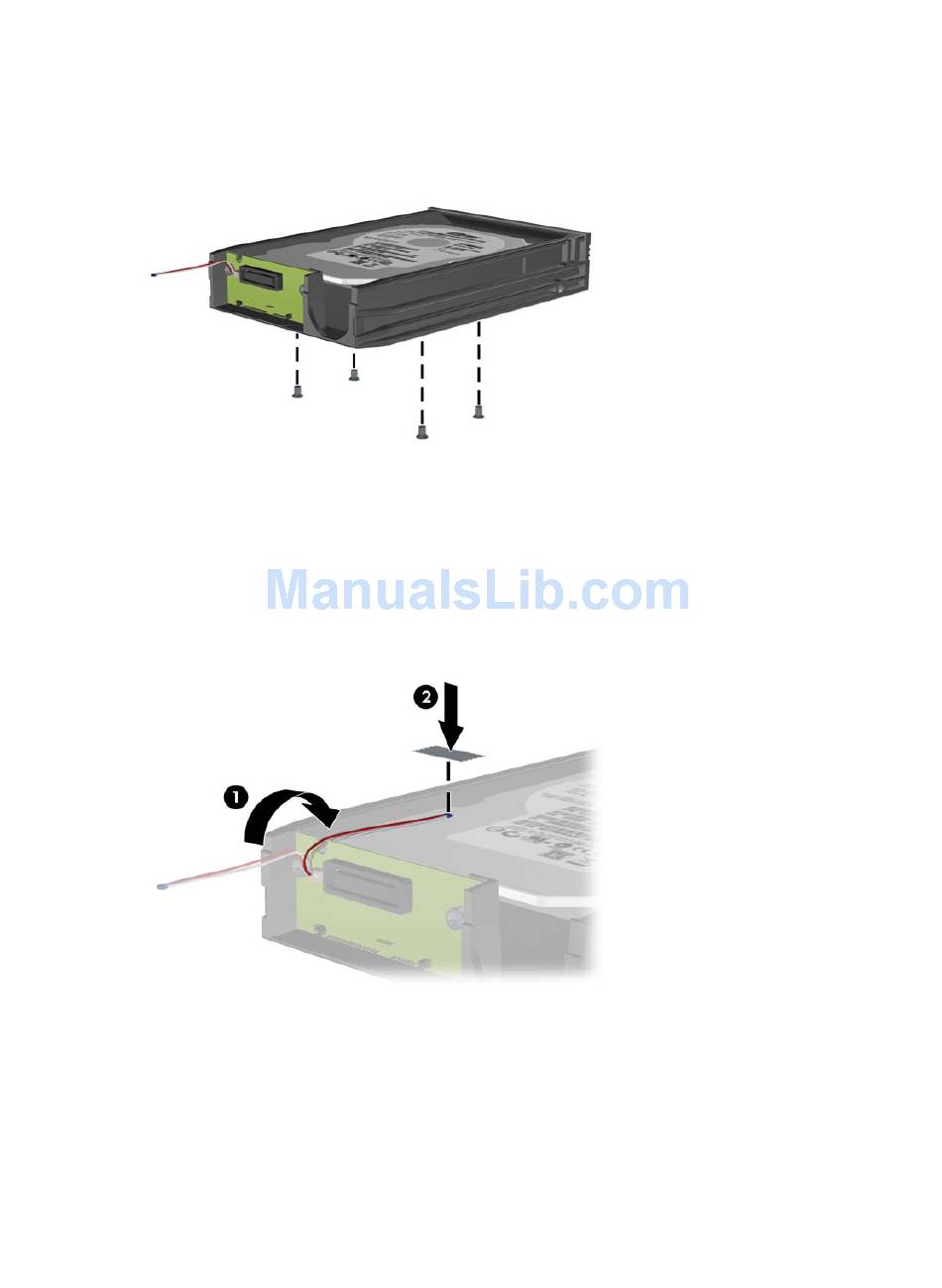

Replace the four screws in the bottom of the carrier to hold the drive securely in place.

Figure 2-44

Place the thermal sensor on top of the hard drive in a position that does not cover the label (1)

and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).

Figure 2-45

Chapter 2 MultiSeat ms6005 Desktop Hardware Upgrades

Replacing the Security Screws

Replacing the Thermal Sensor
