HP t200 Illustrated Parts & Service Map

Illustrated Parts & Service Map

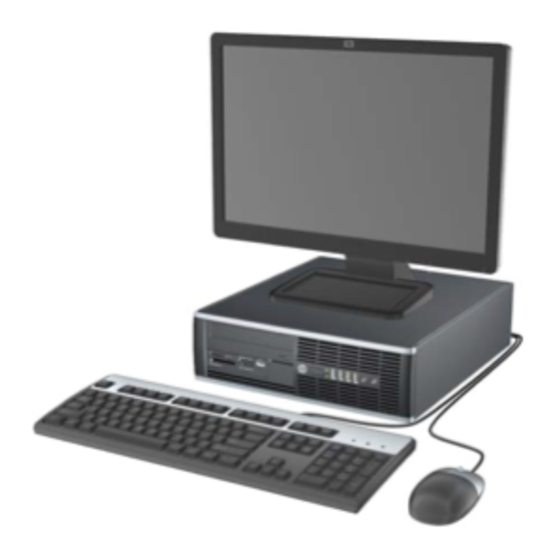

HP MultiSeat ms6200 and
HP t200 Zero Client For MultiSeat
©
2011 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for tech-
nical or editorial errors or omissions contained herein. Intel, Pentium, Intel
Inside, and the Intel logo are trademarks or registered trademarks of the Intel
Corporation and its subsidiaries in the U. S. and other countries.
Document Number 675834-001.
Key Specifications
Processor Type Intel® Core i7, i5
RAM Type Non-ECC DDR3 PC3-10600 (1333 MHz) & PC3-8500 (1066 MHz)
Maximum RAM 16 GB
Expansion Slots •
(Low profile)
•
•
Chipset Intel Q65 Express
Graphics Adapter Integrated Intel HD graphics
Bays •
•
•
I/O Interfaces Front: (4) USB, microphone, headphone
Rear: (6) USB, PS/2 keyboard and mouse, line in, line out,
VGA, DisplayPort v1.1a, RJ-45, serial
Preinstalled Operating Microsoft® Windows® MultiPoint™ Server 2011
Systems

Spare Parts

System Unit
1 Front bezel
2 Power supply, 90% efficient
Power supply
3 Chassis
4 Access panel
* Not shown
HP MultiSeat ms6200 and HP t200 Zero Client
1st Edition October 2011.
(1) PCIe-x16
(2) PCIe-x1
(1) PCI
(1) external 5.25-inch
(1) internal 3.5-inch
(1) external 3.5-inch
Cables
1 Front I/O cable and power switch assembly
2 SATA cable, 19.5 inch, 2 straight ends
3 SATA power cable
* SATA cable, 25.2 inch, 1 straight end, 1 angled end
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
Washable
Arabic
Belgian[b]
Brazilian Portuguese[b]
Bulgaria
Czech
Danish[b]
Finnish[a]
French[b]
French Canadian
German[b]
Greek[b]
Hebrew
Hungarian
International[b]
International English[b]
Italian[b]
Japanese[b]
[a] not for 537745
Mass Storage Devices (not illustrated)
16X SATA DVD±RW drive with LightScribe
1 TB, 7200 rpm SATA hard drive
500 GB, 7200 rpm SATA hard drive
300 GB, 10000-RPM SATA2 hard drive
250 GB, 7200 rpm SATA hard drive
160 GB, 10000-RPM SATA hard drive
646814-001
613762-001
613763-001
Not spared
646815-001
675834-001
537745-xx1
537746-xx1
613125-xxx
-17x LA Spanish[b]
-18x Norwegian[b]
-20x People's Republic of China[b]
-26x Portuguese
-22x Romanian[c]
-08x Russian
-35x Saudi Arabia
-05x Slovakian
-12x South Korea[b]
-04x Spanish[b]
-15x Swedish[b]
-BBx Swiss
-21x Taiwanese[b]
-37x Thai[b]
-L3x Turkish
-06x U.S.
-29x U.K.[b]
[b] not for 613125
636926-001
638813-001
636923-001
638814-001
-16x
-09x
-AAx
-13x
-27x
-25x
-DEx
-23x
-KDx
-07x
-10x
-11x
-ABx
-28x
-14x
-00x
-03x
581600-001
636930-001
636929-001
648963-001
636927-001
639694-001
