Populating DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM3 operate in memory channel
A. Sockets XMM2 and XMM4 operate in memory channel B.

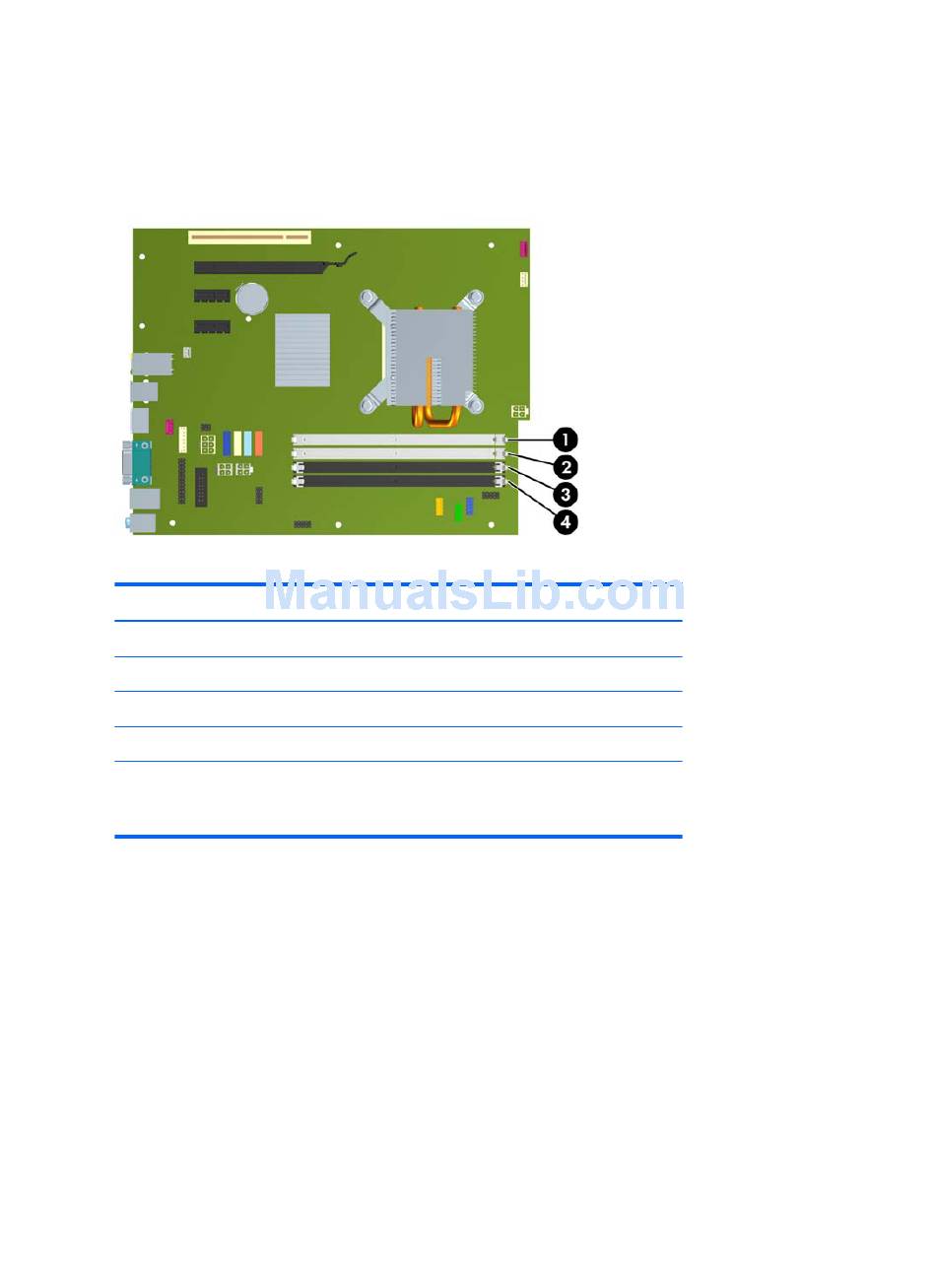

Figure 2-7
Table 2-1 DIMM Socket Locations
Item Description
1 XMM1 socket, Channel A (populate fourth)
2 XMM2 socket, Channel B (populate third)
3 XMM3 socket, Channel A (populate second)
4 XMM4 socket, Channel B (populate first)
NOTE: A DIMM must occupy the black XMM4 socket. Otherwise, the system will
display a POST error message indicating that a memory module must be installed in the
wrong socket.
DIMM Socket Locations
Socket Color
White
White
Black
Black
Installing Additional Memory
