7.
Rotate up the external drive bay housing to access the memory module sockets on the system
board.

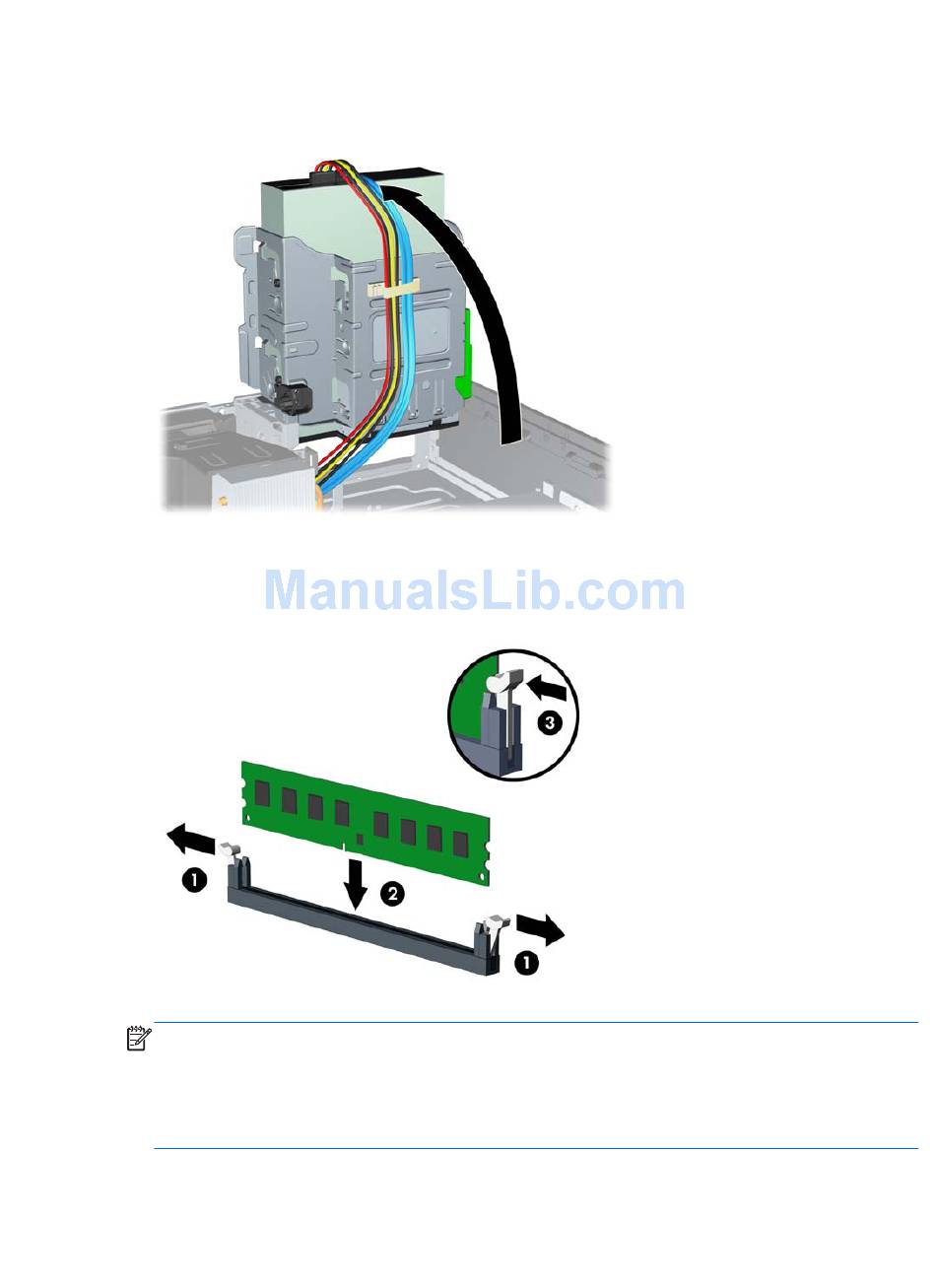

Figure 2-8 Rotating the Drive Cage Up
8.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
Figure 2-9
Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
A DIMM must occupy the black XMM4 socket.
Populate the DIMM sockets in the following order: XMM4, XMM3, XMM2, then XMM1.
9. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
Installing Additional Memory
19
