8.

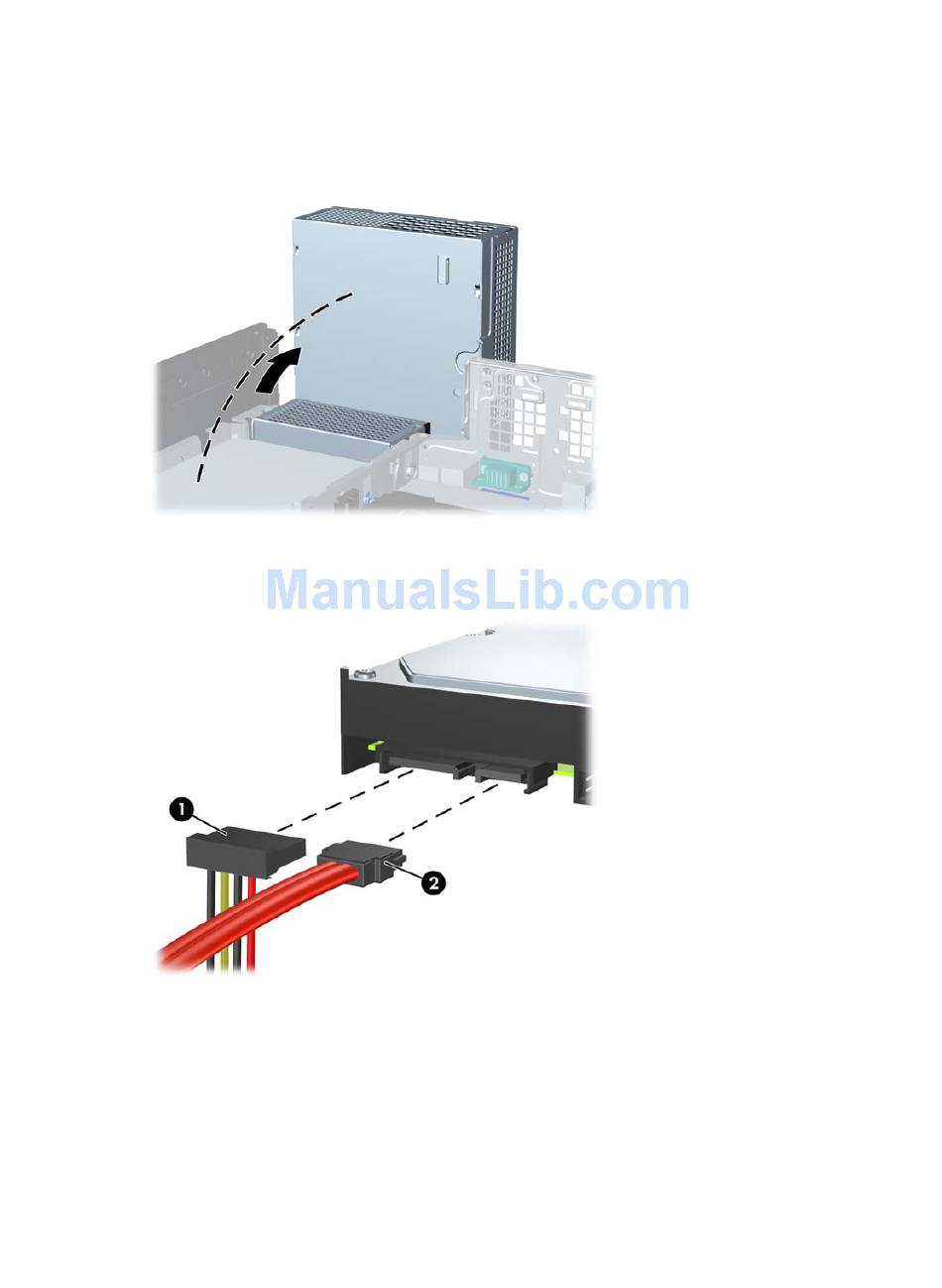

Rotate the power supply to its upright position. The hard drive is located beneath the power
supply.
Figure 2-34
9.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-35
42
Chapter 2 MultiSeat ms6005 Desktop Hardware Upgrades
Raising the Power Supply
Disconnecting the Hard Drive Power Cable and Data Cable
