MAC Address: Displays the MAC address for the management module.
•
Method: Choose between static-Address or Automatic-DHCP. The initial
management module IP address is set to the static IP address of 192.168.150.150. This
IP address may be set to DHCP or a different IP address to enable access within an
existing network environment.
•
External IP configuration settings: IP address, netmask, gateway IP, DNS 1 (Enter
Domain Name Server IP Address, if applicable), DNS 2 (Alternate Domain Name
Server)
•
Internal IP configuration information for the management module is displayed as read
only.
To access the IP Configuration screen, click Settings > IP Configuration in the left
navigation panel. The Intel
the following image is displayed.
®
Intel Modular Server System User Guide
®
Modular Server Control IP Configuration screen similar to

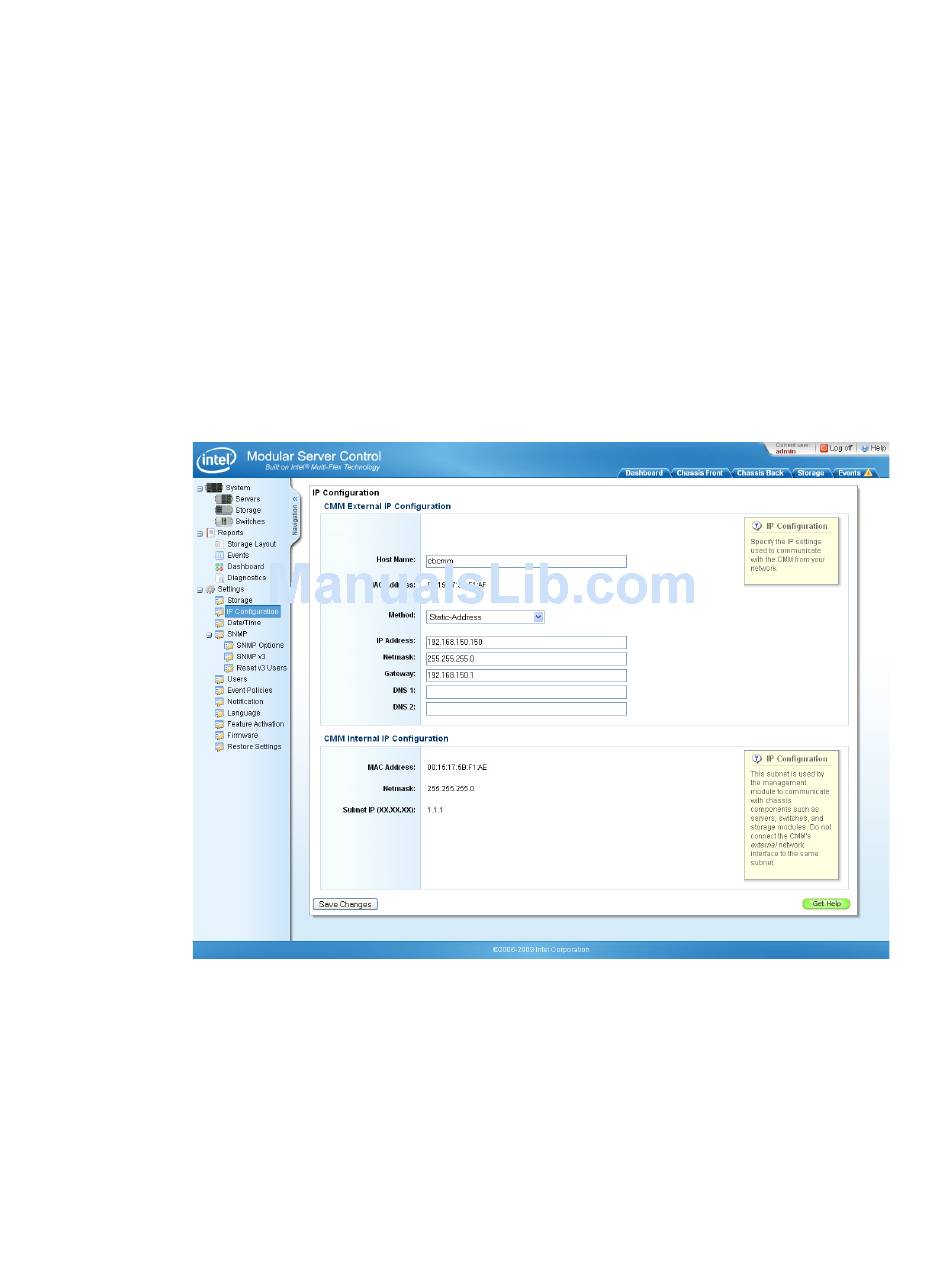

Figure 77. Settings - IP Configuration

119
