Removing the I/O Cooling Module

To remove the I/O cooling module, follow these steps:
1. Review the safety and ESD information at the beginning of this manual and in the
appendices.
2. Locate the I/O cooling module to be replaced.
3. Press the I/O cooling module retention latch to release the I/O cooling module from
the module bay (see letter "A" in
4. Slide the I/O cooling module out of the module bay (see letter "B" in
5. Install another cooling module into the cooling module bay within two minutes.
38
®
Modular Server System MFSYS25, see
®
Modular Server System MFSYS35, see

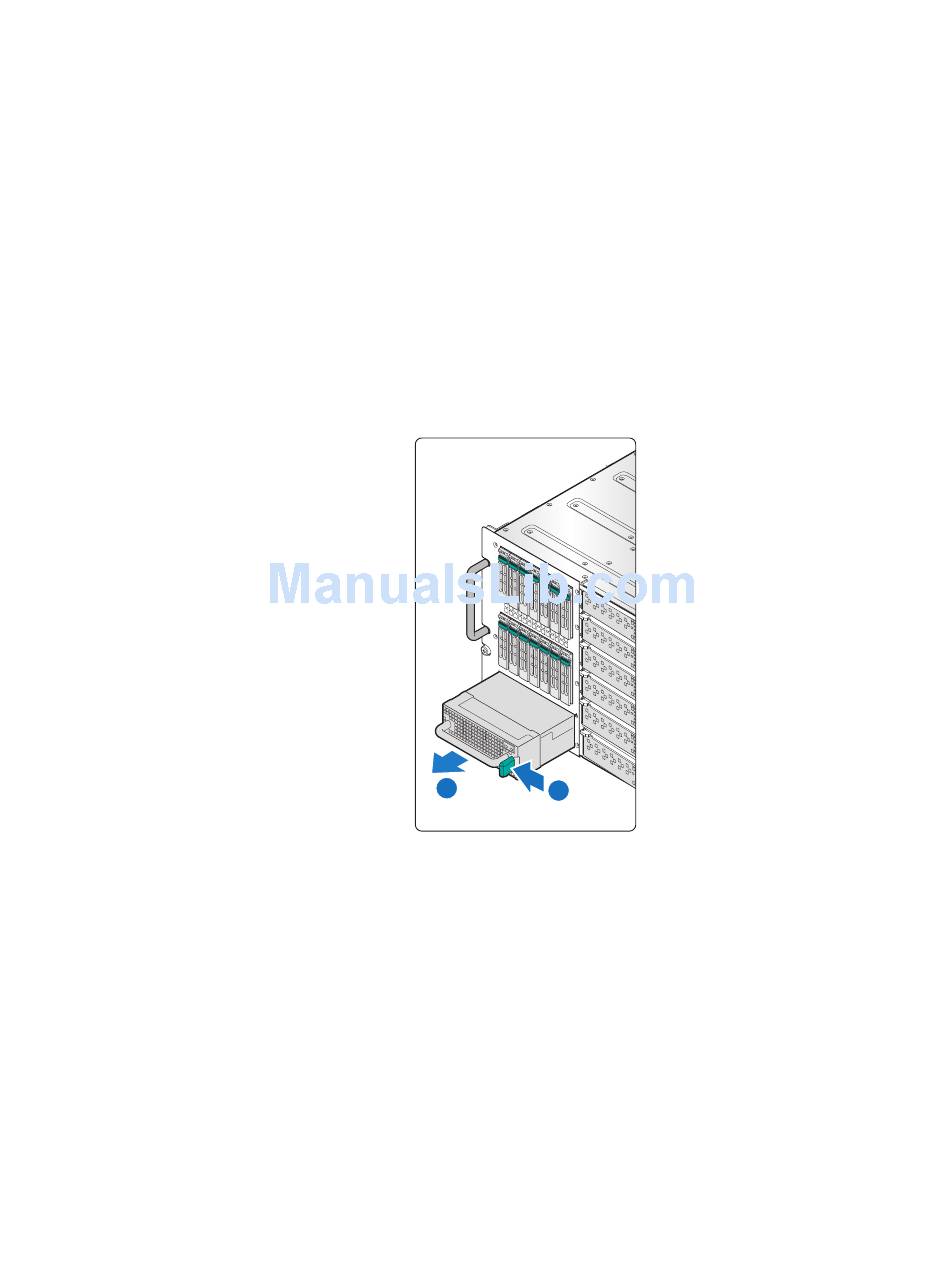

Figure 25. Removing an I/O Cooling Module

Figure 3
Figure
Figure 26).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
B
A
AF003160
®
Intel
4.
Figure
Modular Server System User Guide
26).
