3. From the Server list, either select a server or select Do not assign.
4. Select the desired drive number if you selected a server in step 3. (Drive #0 is the boot
device.)
5. Click Assign to apply the changes.
To assign a virtual drive to multiple servers (available only when the Intel
feature has been activated - for instructions to activate the Intel
"Feature Activation" on page
1. From the Storage view, select a virtual drive.
2. Choose Assign from the action menu.
3. Select Assign to multiple servers check box.
4. Select the desired drive number or the Do not assign option for each server.
5. Click Assign to apply the changes.
Warning: It is not safe to unassign virtual drives from a compute module that is powered on because
the compute module may be actively using the virtual drive. It is recommended to power
off the compute module before reassigning virtual drives to another compute module.
However, it is safe to make new assignments to compute modules regardless of whether
the compute module is powered on or off.
84

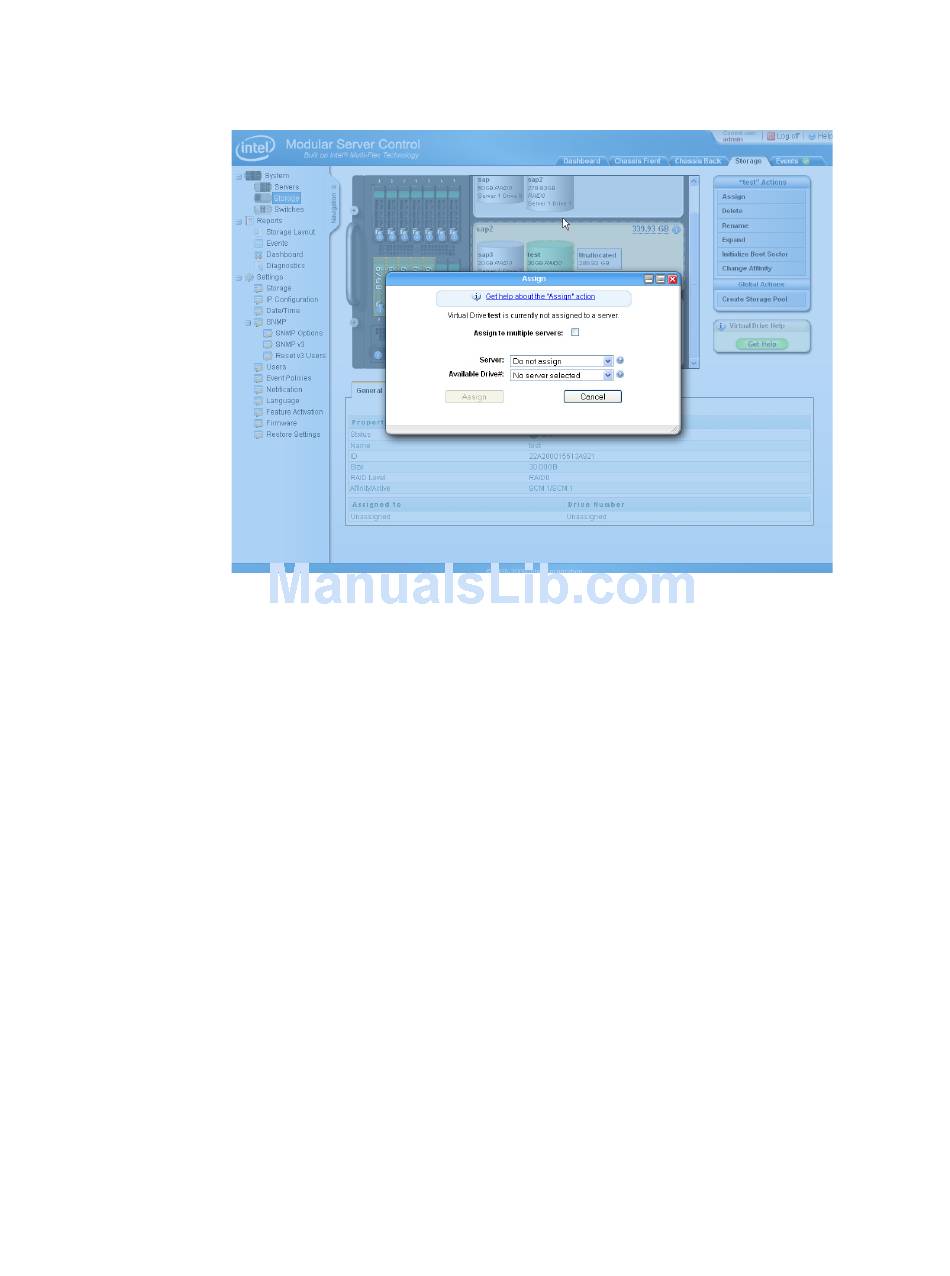

Figure 55. Assign Virtual Drive

132), follow these steps:
®
®
Shared LUN feature, see
®
Intel Modular Server System User Guide
Shared LUN
