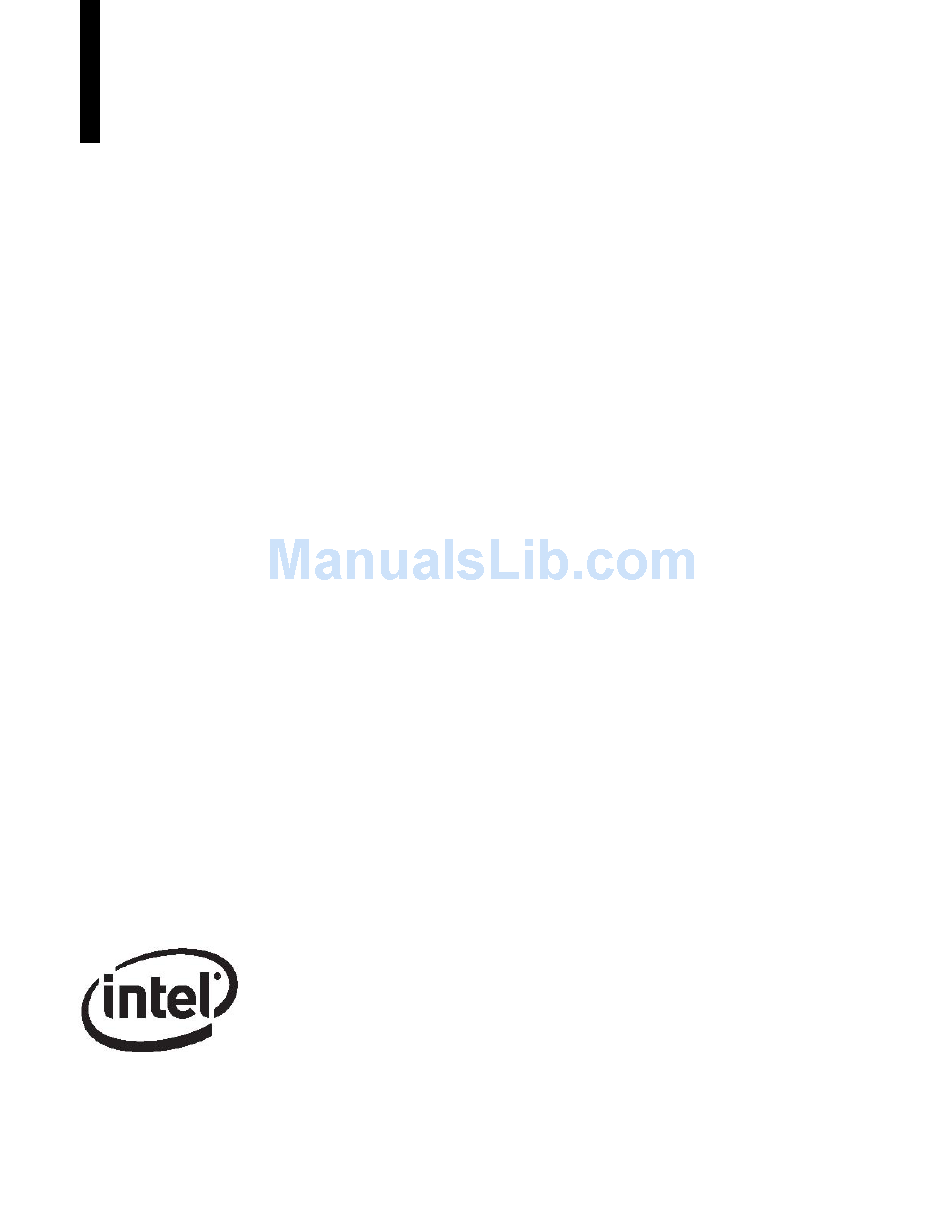

- Page 1 Intel Modular Server ® Spares/Parts List and Configuration Guide A reference guide to assist customers in ordering the necessary components to configure the Intel Modular Server Revision 2.0 December, 2009 Enterprise Platforms and Services Marketing...
- Page 2 RODUCTION RDER ODES MFS5000SI – B OXED ROCESSOR RDER ODES MFS5000SI – T ROCESSOR RDER ODES MFS5520VI – B OXED ROCESSOR RDER ODES MFS5520VI – T ROCESSOR RDER ODES December 09 Intel® Modular Server Configuration Guide Page 2 of 10...
-
Page 3: Revision History
FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice. - Page 4 December 09 Intel® Modular Server Configuration Guide Page 4 of 10...
- Page 5 − Up to fourteen 2.5” SAS drives on MFSYS25 − Up to 2 Ethernet Switch Modules − Up to six 3.5” SAS or SATA drives on MFSYS35 − Each module features 10/100/1000GbE Full Duplex Ports Hard Disk Drive Carrier: −...

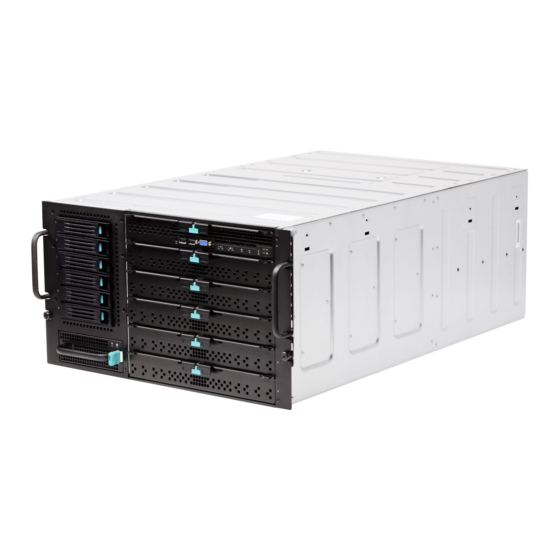

- Page 6 *Contains new I/O fan and power supplies. Please see Product Change Notification #108518 & 109329 Intel® Modular Server System MFSYS35, chassis with integrated 3.5" shared HDD bay. Contains 5 server blanks, 6 3.5” HDD carriers, main and IO fans, 2 power...
- Page 7 IO Fan module. When using MFHDDBAY35 in MFSYS25, MM# 899168 is 899168 MFIOFAN required if not using MFSYS25 with TA# D91400-006 or greater. 899916 MFMIDPLANE Midplane for MFSYS25 / MFSYS35 chassis which includes SD Flash Intel® Management Module MFCMM, management module for MFSYS25 / 891834 MFCMM MFSYS35 FXX25HDDCAR 881681 2.5”...
- Page 8 Supported Boxed Processors for MFS5000SI The Intel Modular Server System uses standard 1U heatsinks found in the active boxed processors Product Code Description BX805565110A 892147 SLAGE 1.60GHz 1066MHz 4MB Dual-Core Intel® Xeon® Processor 5110 BX805565120A 892150 SLAGD 1.86GHz 1066MHz 4MB Dual-Core Intel® Xeon® Processor 5120...
- Page 9 2.83GHz 1333MHz 12MB Quad-Core Intel® Xeon® Processor E5440 AT80574KJ080N 898599 SLBBM 3.00GHz 1333MHz 12MB Quad-Core Intel® Xeon® Processor E5450 HH80563JH0258M 891119 SLAEQ 1.60GHz LV 1066MHz 8MB Quad-Core Intel® Xeon® Processor L5310 HH80563JH0368M 891120 SLAEP 1.86GHz LV 1066MHz 8MB Quad-Core Intel® Xeon® Processor L5320 AT80574JJ053N 898603 SLBBS 2.33GHz LV 1333MHz 12MB Quad-Core Intel®...
- Page 10 Supported Boxed Processors for MFS5520VI Product Code Description BX80602X5570 901025 SLBF3 X5570 2.93GHz 1333MHz 8MB Quad-Core Intel® Xeon® Processor BX80602X5560 901026 SLBF4 X5560 2.8GHz 1333MHz 8MB Quad-Core Intel® Xeon® Processor BX80602X5550 901027 SLBF5 X5550 2.66GHz 1333MHz 8MB Quad-Core Intel® Xeon® Processor...
