Installing the I/O Cooling Module

To install the I/O cooling module, follow these steps:
1. Review the safety and ESD information at the beginning of this manual and in the
appendices.
2. Locate the cooling module bay and remove the cooling module to be replaced.
3. Slide the replacement I/O cooling module into the vacant module bay (see
until the retention latch engages.
Warning: Replace the cooling module with another cooling module within two minutes.

Installing and Removing Hard Drives

The Intel
compute modules by way of an on-board storage bay combined with a storage
management module. The on-board storage bay supports the installation of up to 14 hot-
swap 2.5-inch SAS/SATA hard drives in the Intel
6 hot-swap 3.5-inch SAS/SATA hard drives in the Intel
MFSYS35 that are configured through the integrated Intel
For more information, see
page 57.
®
Intel Modular Server System User Guide

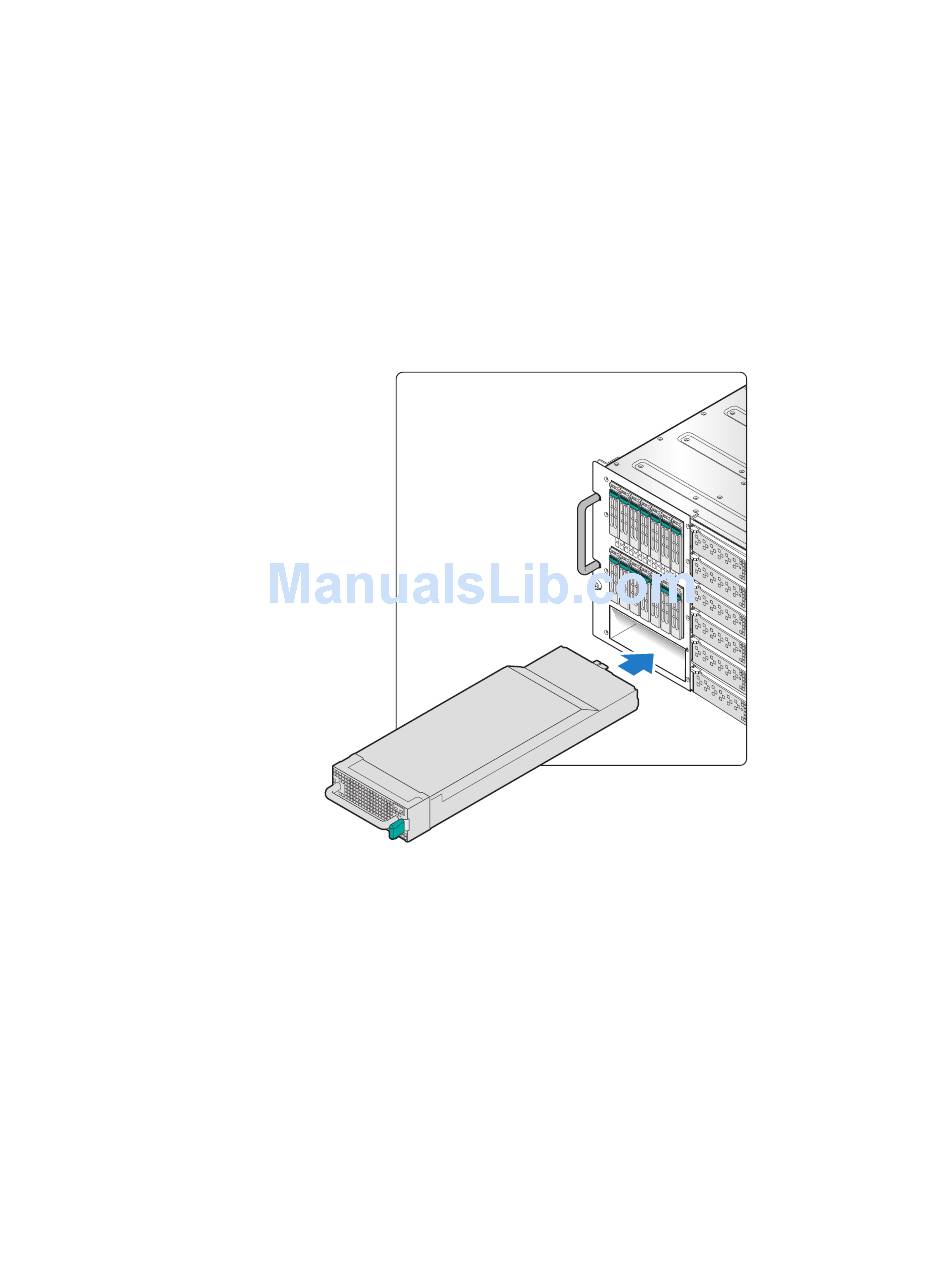

Figure 26. Installing an I/O Cooling Module

®
Modular Server System MFSYS25/MFSYS35 provides storage for installed
"Using the Intel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AF002417
®
Modular Server System MFSYS25 or
®
Modular Server System
®
Modular Server Control UI.
®
Modular Server Control User Interface" on
Figure 26)
39
