Change the vertical and horizontal offsets of the hatch pattern
You can apply these overrides to all corresponding object faces with the same material or to only the selected object
face.

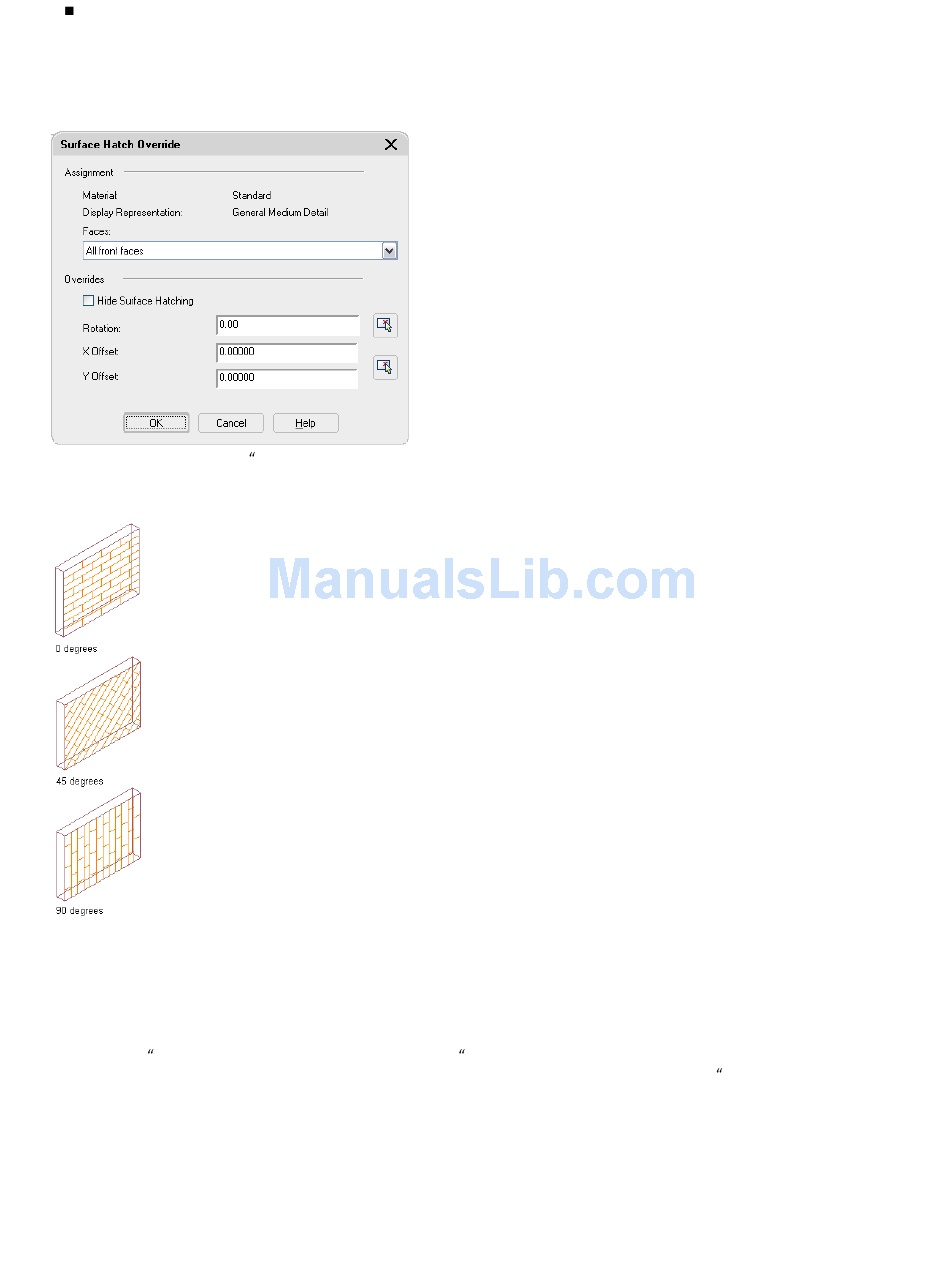

In-place editing a surface hatch
For more information, see Working with Surface Hatches" on page 513.
Changing the hatch rotation with in-place editing

Aligning the UCS to an Object Face

Use this procedure to align the currently active UCS to the face of an object.
You can align the UCS to the face of an AEC object or to the face of an AutoCAD solid. For detailed information about
the UCS, see Use Coordinates and Coordinate Systems in AutoCAD Help. For more information about working with
objects in a temporary section, elevation or plan view with the UCS correctly aligned, see Isolating Objects" on page
72.
Aligning the UCS to an Object Face | 71
